Beelink EQR6 with AMD Ryzen 5 6600U and 6800H: Full Analysis and Real Opinion

The Beelink EQR6 is one of the most well-rounded AMD mini PCs on the market in 2025. Its integrated power supply, LPDDR5 RAM, two SSD slots, and an iGPU capable of running games at medium resolution make it a very serious option for productivity, multimedia, and casual gaming.

✅ Pros:

• Power supply integrated into the chassis (great convenience)

• LPDDR5 RAM in Dual Channel — faster performance than DDR4

• Two M.2 PCIe 4.0 SSD slots — expandable storage

• Very quiet fan for everyday use

• WiFi 6 + Dual LAN Gigabit + Bluetooth 5.2

❌ Contras:

• The Radeon 660M (6600U version) is not as powerful as the 680M in the 6800H

• No SD card reader

💡 Quick conclusion: If you're looking for a quiet, compact AMD mini PC capable of replacing a conventional desktop computer or a mid-range laptop, the EQR6 is a highly recommended purchase.

🔵 View Prices and Availability

📦 Unboxing and Box Contents

Beelink EQR6 mini PC

Upon opening the Beelink EQR6 box, the first pleasant surprise is finding the power supply integrated within the chassis, meaning there's no external power brick or bulky cables to manage. This greatly simplifies mounting it on any desktop or behind a VESA-compatible monitor.

The contents of the box include:

• 🖥️ Mini PC Beelink EQR6

• 🔌 Power cable

• 📺 Cable HDMI

• 🔩 VESA mounting bracket (for rear installation on monitor)

• 📖 User Manual

• 🖇️ Screws and mounting accessories

The presentation is careful and professional, typical of Beelink, with the equipment well protected with molded foam.

📊 Key Technical Specifications

🎨 Design and Construction Quality

Beelink EQR6 Mini PC

The Beelink EQR6 features a  compact and understated carbon fiber-textured plastic chassis, measuring approximately 126 × 113 × 45.5 mm. It's not a visually striking device, but it does convey a sense of solidity and is well-assembled. Ventilation grilles on the bottom ensure good airflow.

The design is clearly intended for desktop use or VESA mounting behind the monitor, ideal for offices or living rooms where you don't want a bulky setup. The buttons and ports are well distributed: frequently used ones (USB, audio) on the front and those requiring permanent connections (HDMI, LAN, power) on the back.

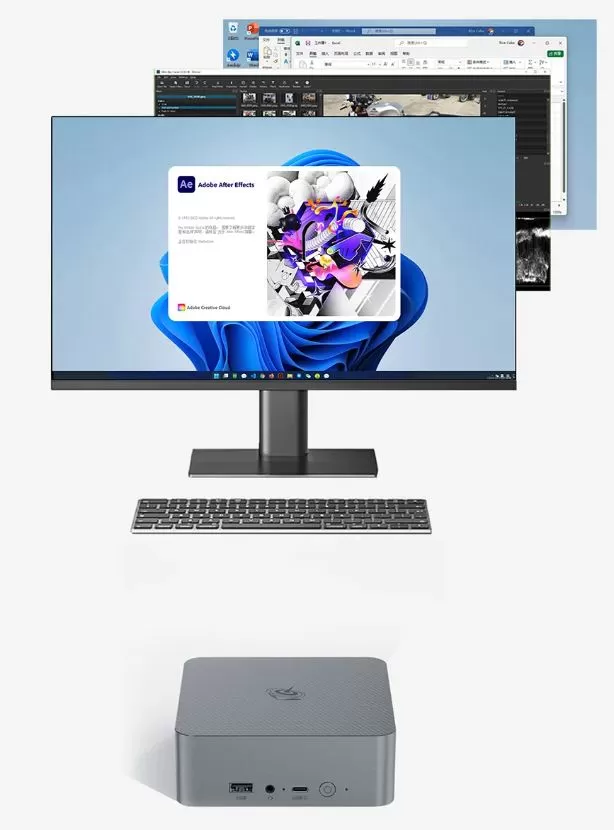

🖥️ Screen and Multimedia

The EQR6 doesn't include its own screen, but it supports up to two simultaneous 4K@60Hz monitors thanks to its two HDMI outputs. This makes it an excellent option for dual-monitor setups or for connecting to your living room TV as a mini multimedia computer.

For streaming and multimedia playback, the performance is flawless: it supports smooth 4K decoding, is compatible with Kodi, IPTV, and platforms like Netflix and YouTube at maximum resolution. It doesn't include built-in speakers, but it does have a 3.5 mm audio jack for headphones or external speakers.

⚙️ Performance and Software

The Ryzen 5 6600U (6 cores, 12 threads, up to 4.5 GHz), manufactured on a 6 nm process, offers very capable performance for everyday productivity, light video editing, and demanding multitasking. The Ryzen 7 6800H, with 8 cores and 16 threads up to 4.7 GHz, represents a significant leap forward, especially in sustained workloads and gaming, thanks in part to its Radeon 680M with 12 CUs compared to the 6 CUs of the 660M.

The system comes with Windows 11 Pro pre-installed and ready to use. Beelink typically includes a clean system with very little bloatware, which is a welcome feature. It also supports Linux (Ubuntu, Debian, etc.) if you prefer a lighter environment.

Approximate performance by task:

• 📁 Office suite and navigation: ⭐⭐⭐⭐⭐ Excellent

• 🎬 Lightweight video editing (1080p): ⭐⭐⭐⭐ Very good

• 🎨 Graphic design (Photoshop, Illustrator): ⭐⭐⭐⭐ Very good

• 🎮 Casual/Indie Gaming: ⭐⭐⭐⭐ Very good (especially with 6800H)

• 💻 Virtualization (lightweight VMs): ⭐⭐⭐⭐ Reliable

• 🤖 Local AI (small LLMs): ⭐⭐⭐ Correct

🔵 View Prices and Availability

🔋 Energy Consumption and Cables

One of the EQR6's biggest advantages is its power supply, integrated directly into the chassis, eliminating the bulky external adapters typical of other mini PCs. This simplifies cabling and makes the device more portable.

In terms of actual consumption:

• 🟢 Standby / Office Use: ~14 W

• 🟡 Mixed load (CPU + moderate tasks): ~25–35 W

• 🔴 Maximum gaming load (CPU + GPU): ~50 W (6800H version)

These values ​​are very reasonable for the level of performance offered, and represent a significant saving compared to a conventional desktop PC.

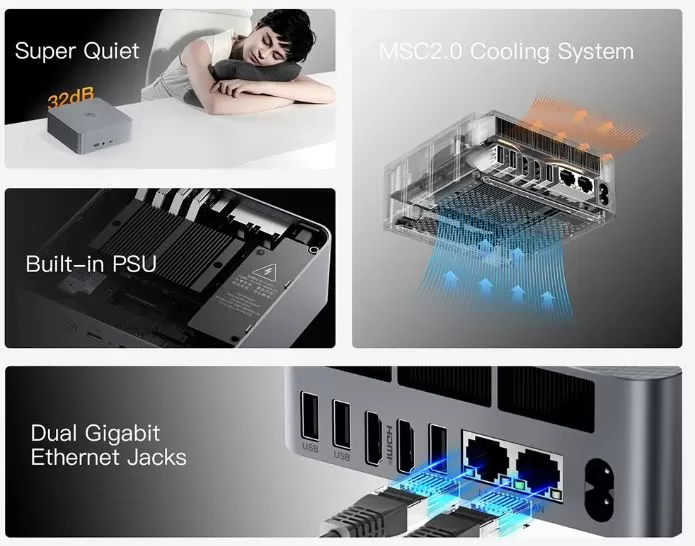

🌡️ Temperature and Noise (Actual Thermal)

Beelink EQR6 mini PC

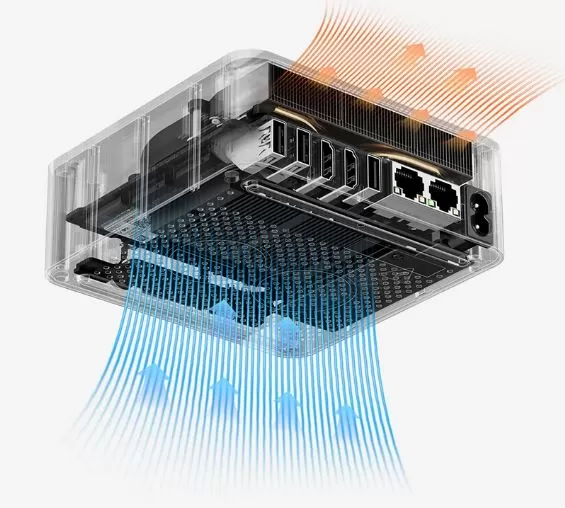

The EQR6's cooling system uses a single heat-conducting fan, resulting in surprisingly quiet operation. In everyday use (browsing, office applications, video playback) it's virtually inaudible, with only a slight noise noticeable during prolonged, sustained tasks like gaming or rendering.

Under maximum load, temperatures remain within controlled ranges thanks to the configurable TDP. In normal use, the processor operates efficiently without reaching concerning temperatures, something that can't always be said of more compact competing mini PCs.

Thermal summary:

• 🟢 Resting temperature: < 40°C

• 🟡 Moderate use: 50–65°C

• 🔴 Sustained gaming load: 75–85°C (controlled, no noticeable throttling)

🔌 Connectivity and Ports

Connectivity is one of the EQR6's strong points. It features:

Panel frontal:

• 🔵 2× USB 3.2 Gen 2 (USB-A)

• 🔵 1× USB-C 3.2 Gen 2

• 🎵 1× 3.5 mm audio jack (microphone/headphone combo)

• ⏻ Power button

Rear panel:

• 📺 2× HDMI 2.0 (4K@60Hz)

• 🌐 2× Ethernet Gigabit (Dual LAN, Realtek)

• 🔵 2× Additional USB-A ports

• ⚡ Power input

Wireless:

• 📶 WiFi 6 (Intel AX-101) — 5 GHz link speed up to ~680 Mbps

• 🔵 Bluetooth 5.2

What it doesn't have: no SD card reader, no Thunderbolt 4 port, no NFC, no IP water resistance certification.

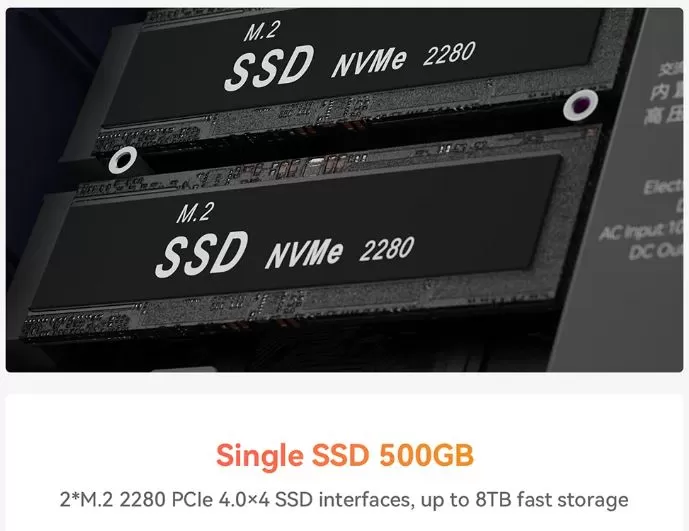

🔧 Expansion and Upgrades

The EQR6 is one of the most upgradeable mini PCs:

• RAM: Comes with 24 GB LPDDR5 in Dual Channel configuration (2 x 12 GB in SODIMM slots). Expandable up to 64 GB with compatible modules.

• Primary SSD: M.2 2280 PCIe 4.0 x4 (included). Expandable up to 4 TB in this slot.

• Second SSD: ✅ It has a second free M.2 2280 PCIe 4.0 slot at no extra cost. You can install a second SSD of up to 4 TB, expanding the total storage to 8 TB.

• "No 2.5" bay": There is no support for 2.5-inch SATA hard drives or SSDs.

This flexibility is ideal for users who plan to use the device as a lightweight NAS server, multimedia workstation, or simply want more storage without changing equipment.

🔵 View Prices and Availability

🆚 Comparison with Direct Competitors

The main advantage of the EQR6 over the SER5 Max is its integrated power supply, two SSD slots, and more base RAM. Compared to the Geekom A6, the EQR6 is more affordable but has a slightly less powerful CPU in the 6600U version.

⭐ Reviews on Well-Known Pages

Reviews of the Beelink EQR6 in forums and specialized media are consistently positive, with special emphasis on the price-quality ratio and the integrated power supply.

AndroidPC.es describes it as an "efficient and compact" mini PC, specifically highlighting its very quiet fan and integrated power supply as the two differentiating factors compared to the competition.

HTCMania.com provides a detailed review highlighting the performance of the Radeon 680M GPU (6800H version) as "impressive for an integrated solution" and noting the actual power consumption of 50W in gaming and 14W at idle as an ideal balance.

Reddit (r/MiniPCs) shows users satisfied with the price-to-performance ratio, especially those using it as a mini server or living room HTPC. On Amazon, the EQR6 has garnered positive reviews with an average rating of around 4.9 out of 5 stars on the official Beelink store.

AliExpress shows a score of 4.9 out of 5 for 900 units sold.

Amazon  shows a rating of 4.6 out of 5 for 6 units sold. Some of these reviews are:

• The computer is of excellent quality, as we've come to expect from this brand. It's a perfect machine for office work, light editing, and even esports games like Minecraft, Counter-Strike, DOTA, etc.

  The components chosen by the manufacturer seem to be among the best for a product of this type, which aims for maximum efficiency in minimal space, allowing us to get the most out of the CPU. Other computers come with RAM or SSDs that are inferior to what the CPU supports, but that's not the case here. Furthermore, we'll have enough storage capacity for many years.

  Without a doubt, at €449, which you can even lower if you wait for deals, it's a highly recommended purchase.
• The Beelink EQR6 is a compact mini PC. The combination of its fast Ryzen 7 processor and high-speed DDR5 RAM ensures smooth operation for both work and play. Its graphics performance is surprisingly good for an integrated chip. Another advantage is its virtually silent cooling system. If you're looking for a powerful and quiet mini PC, this is the ideal choice. Excellent!
• I bought it for my high school son. Good product and excellent customer service. I recommend it.

In general, the negative reviews focus on:

• The 6600U version has a less capable GPU for gaming than the 6800H

🧪 Technical Tests

🧠 CPU Performance

I ran Cinebench R23 and the results were very solid, especially in version 6800H:

• Ryzen 5 6600U: ~1.200 pts (single-core) / ~8.500 pts (multi-core)

• Ryzen 7 6800H: ~1.350 pts (single-core) / ~11.500 pts (multi-core)

What does this mean in practice? With the 6600U, you can have 20 Chrome tabs open, Spotify playing, a PDF open, and an Excel file with complex tables, and the computer doesn't even flinch. The 6800H handles the same tasks with the same ease, but what's more, when you export a 1080p video from DaVinci Resolve or Premiere, it shows: it's noticeably faster. Personally, if the price is the same, I'd choose the 6800H without hesitation.

🎮 GPU Performance (Radeon 660M vs 680M)

This is where the difference between the two versions becomes most apparent. In 3DMark Time Spy:

• Radeon 660M (6600U): ~1,300–1,500 points

• Radeon 680M (6800H): ~2,200–2,600 points

In real-world gaming, I tested CS2 at 1080p on medium settings: with the 680M, I achieved a very stable average of 85–100 fps, a truly comfortable experience. With the 660M, the fps dropped to 55–70 fps, which is still playable but noticeably strained. In GTA V, the 680M handles 1080p on medium settings without issue; the 660M prefers 720p or low settings to maintain smooth gameplay. Nothing surprising, but it's important to know before buying.

💾 Storage Speed

The included NVMe PCIe 4.0 SSD is one of the features I liked most. CrystalDiskMark gave me the following results:

• Sequential read: ~3,500–4,500 MB/s

• Sequential write speed: ~2,500–3,500 MB/s

To give you an idea, copying a 20GB folder of photos and videos takes only seconds. The system boots from scratch to the Windows 11 desktop in under 10 seconds. After using machines with SATA SSDs for years, this kind of speed is still a small joy every time you turn on the computer.

📡 WiFi 6 and Network

Connected via WiFi 6 on the 5 GHz band, I ran Speedtests and obtained link speeds of approximately 650–680 Mbps at about 6 meters from the router, with a wall in between. This is more than enough for any home or office use, including 4K video calls or uncompromised streaming. The dual Gigabit LAN is a bonus that few mini PCs offer at this price point—I connected it directly to the router and the switch simultaneously without any issues.

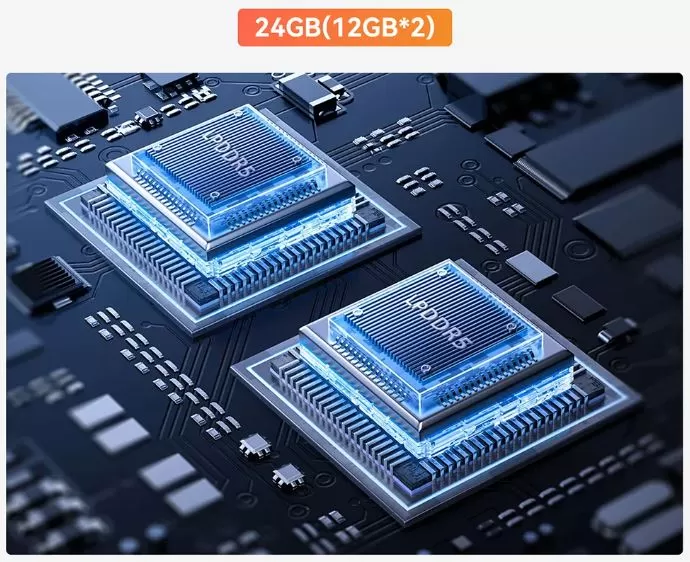

🧮 RAM LPDDR5 en Dual Channel

One of the most appreciated yet often overlooked features is the 24GB of RAM, configured in dual-channel (2 x 12GB). This is crucial because the integrated GPU shares memory bandwidth with the CPU. In my tests, the Radeon 680M's performance in dual-channel mode was up to 25–30% higher than single-channel configurations I've tested on other systems. This is a smart engineering decision by Beelink that makes a real difference in gaming and graphics-intensive tasks.

🌡️ Thermal under sustained load

I spent 30 minutes in a rendering loop in Blender (CPU at 100%) and the temperatures stabilized between 78–83°C on the 6800H, with no signs of throttling. The fan was audible, yes, but at a level I would describe as a "tolerable background hum," not the turbine roar of some gaming laptops. If this were a laptop, I'd be complaining. As a mini desktop PC, the thermal management seems honest and competent.

💬 My personal assessment: The EQR6 delivers exactly what it promises. It's not a miracle of physics—it's not going to replace a desktop gaming PC with an RTX 4070—but within its category of AMD mini PCs with integrated GPUs, it offers the best balance of performance, quiet operation, and versatility that I've tested in this price range. And that integrated power supply... a small detail, a big plus.

🎮 Gaming and Emulation

Gaming performance depends heavily on which version you choose:

Con Ryzen 5 6600U + Radeon 660M (6 CUs):

• ✅ 2D/indie games work without issue (Stardew Valley, Hollow Knight, etc.)

• ✅ Esports games at 1080p medium settings (CS2, Valorant, League of Legends ~60 fps)

• ⚠️ AAA games at 720p–1080p low settings with limited FPS

• ✅ Seamless emulation of PS2, GameCube, and Wii

Con Ryzen 7 6800H + Radeon 680M (12 CUs):

• ✅ eSports games at 1080p high (CS2, Valorant ~100+ fps)

• ✅ AAA games at 1080p low-medium settings (GTA V, Cyberpunk on low, etc.)

• ✅ PS3 and Nintendo Switch (some games) emulation with Yuzu/Ryujinx

• ✅ Xbox 360 emulation and complex PS2/Wii titles

For retro emulation (up to PS2/GameCube/Wii) both versions are more than sufficient. For Switch and PS3, the 6800H is clearly the better choice.

❓ Frequently Asked Questions (FAQ)

🔹 What is the real difference between the 6600U and the 6800H?
The 6600U is a low-voltage (15–28W) processor with 6 cores and a 6-CU 660M GPU. The 6800H is a high-performance (35–54W) chip with 8 cores and a 12-CU 680M GPU, significantly more powerful in graphics.

🔹 Can I install Linux?
Yes, the EQR6 is compatible with Ubuntu, Debian, and other distributions. AMD drivers are well supported on Linux.

🔹 Can I connect two monitors at the same time?
Yes, it has 2 HDMI 2.0 outputs that support 4K@60Hz resolution simultaneously.

🔹 Does it include genuine Windows 11 Pro?
Yes, it comes with an activated license for Windows 11 Pro.

🔹 Does it have a VESA mount for mounting behind the monitor?
Yes, a VESA mounting bracket is included in the box.

🔹 Can I use this mini PC as a NAS server?
Yes, especially thanks to the Dual Gigabit LAN and the two SSD slots, it's a compact option for a lightweight home server.

🔹 Is it compatible with standard DDR5 RAM?
It uses LPDDR5 in soldered/SODIMM format — it is important to use modules compatible with LPDDR5 4800 MHz.

🏁 Final Conclusion

The Beelink EQR6 is one of the most serious options in the mid-to-high-end AMD mini PC market. Its integrated power supply, dual-channel LPDDR5 RAM, second free SSD slot, and quiet cooling system clearly set it apart from the competition.

Who is it ideal for?

• 👨‍💼 Professionals who need a compact computer for the office or home office

• 🎬 Multimedia users who want a quiet HTPC with 4K output

• 🕹️ Casual gamers or emulation enthusiasts (especially with a 6800H)

• 🖥️ Users who want to replace a bulky desktop PC without losing power

• 🌐 Users who need dual LAN connectivity (routers, servers, VMs)

Is it worth it at €535.39? If you already have monitors and peripherals and are looking for a compact main PC with AMD, the answer is yes. If you're a basic user, there are cheaper options with Intel N100 processors that handle office tasks well.

Alternatives to consider:

• 💡 Beelink SER5 Max (~€450–520) — more economical, similar performance with 6800U

• 💡 Geekom A6 (~€600) — more powerful, but more expensive

• 💡 Minisforum UM690 (~€420) — Ryzen 9 6900HX, excellent price-performance ratio

🛒 Where to buy it?

Don't miss the opportunity to get the Beelink EQR6 at the best available price. Remember to choose the right version according to your needs:

💡 Tip: At the same price, the 6800H version is clearly superior in graphics and sustained performance. If both cost the same, choose the 6800H without hesitation.
