🖥️ BMAX B5A Pro Mini PC: Full Review 2026

The BMAX B5A Pro is a mini PC that surprises with its price-to-performance ratio. Featuring an 8-core AMD Ryzen 7 processor, triple 4K video output, expandable RAM up to 64GB, and a 2.5" SATA secondary storage slot, it offers features typically found in much more expensive machines. It's a solid option for professional office tasks, multimedia, casual gaming, and retro emulation.

📦 Unboxing and Box Contents

The BMAX B5A Pro arrives in a simple and well-protected package. The verified contents of the box include:

• 🖥️ Mini PC BMAX B5A Pro

• 🔌 External power adapter

• 📺 HDMI cable

• 🔩 VESA mount with screws for monitor mounting

• 📄 User manual

  ⚠️ Important note about the processor: BMAX ships this computer with either an AMD Ryzen 7 5825U or Ryzen 7 5700U processor at random ; you cannot choose. Both are 8-core, 16-thread chips, although the 5825U offers slightly better performance. Please check with the seller to see if this is relevant to you before purchasing.

The computer comes with Windows 11 Pro pre-installed and activated, ready to use from the first boot.

🖥️ View Prices and Availability

📋 Technical Specifications

🎨 Design and Construction Quality

BMAX B5A Pro mini PC

The BMAX B5A Pro features an all-black casing with a metallic finish on the top cover, giving it a serious and understated look. The side vents are well-placed to optimize airflow. The chassis is compact—comparable to the size of a DVD case—and the build quality is solid: no noticeable flex or creaking.

The design has an industrial feel with modern touches, blending discreetly into any workspace or living room. It includes a VESA mount in the box for direct mounting behind the monitor, ideal for minimalist desks. Overall, it conveys a sense of professionalism and sturdiness for its price range.

🖥️ Screen and Multimedia

The BMAX B5A Pro doesn't include a screen, but its video output system is one of its biggest strengths. Thanks to the combination of HDMI 2.1, DisplayPort 1.4, and USB-C with video support, it allows you to connect up to three monitors simultaneously at 4K/60Hz with HDR support.

Multimedia performance is excellent for its class: it plays 4K video without stuttering, supports H.264 and H.265 hardware decoding, and effortlessly handles platforms like Netflix, YouTube 4K, and Plex. For an HTPC in the living room or a multi-monitor desktop setup, this device stands out significantly against rivals with only one 4K output.

⚡ Performance and Software

Mini computer cooling system

The AMD Ryzen 7 5825U (or 5700U) processor is the same 8-core chip found in premium laptops from well-known brands. Documented real-world benchmarks show:

• Cinebench R23 Single-Core: ~1,200–1,300 points

• Cinebench R23 Multi-Core: ~9,000–10,500 points

• CrystalDiskMark (SSD NVMe): Reads ~2,800–3,200 MB/s, Writes ~1,800–2,200 MB/s

• 3DMark Fire Strike (Vega 8 GPU): ~2,700–3,200 points

The "Space Capsule" cooling system — with dual heat pipes, turbine-type main fan and additional auxiliary fan — raises the TDP from 15W to 45W, with a performance improvement of 15-25% compared to conventional cooling systems in mini PCs of this category.

Windows 11 comes pre-installed and activated. It may include some additional apps that can be easily uninstalled, and Windows updates work normally.

🖥️ View Prices and Availability

🔋 Energy Consumption and Cables

The BMAX B5A Pro includes an external power supply. Typical power consumption is around 15-25W, and can reach 40-45W under maximum load. It is a very energy-efficient device: its annual energy consumption under heavy use is a fraction of that of any conventional desktop PC. The power cable is standard and compatible with European plugs.

🌡️ Temperature and Noise (Actual Thermal)

The "Space Capsule" system integrates a main turbine-type fan, two copper heat pipes, and a secondary auxiliary fan, which sets this model apart from other mini PCs in the same category. During office use, CPU temperatures remain between 45-55°C with a virtually imperceptible noise level. Under sustained load, the CPU can reach 75-80°C with the fans at higher speeds, generating an audible but tolerable hum.

Thanks to its dual ventilation system, the B5A Pro maintains stable performance during long sessions without thermal throttling, which is especially appreciated during rendering tasks or extended gaming sessions.

🔌 Connectivity and Extras

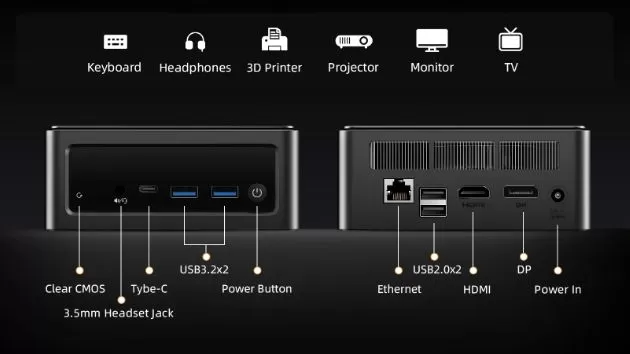

The BMAX B5A Pro has the following ports:

Front panel:

• 2× USB-A 3.2 Gen 1

• 1× 3.5 mm combo audio jack

Rear panel:

• 1× HDMI 2.1 (4K/60Hz, HDR)

• 1× DisplayPort 1.4 (4K/60Hz)

• 1× USB-C (data + 4K video)

• 2× USB-A 2.0

• 1× Gigabit Ethernet RJ45

Wireless:

• WiFi 5 dual-band (2.4 GHz / 5 GHz)

• Bluetooth 5.0

For the vast majority of home and professional uses, the connectivity is more than sufficient. WiFi 5 offers real speeds of up to 300-400 Mbps, suitable for 4K streaming, video calls, and remote work without any issues.

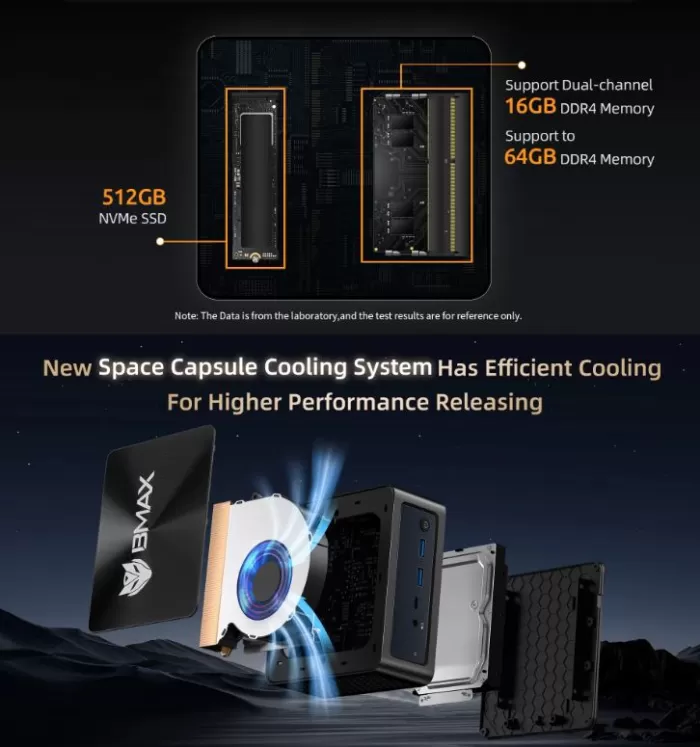

🔧 Expansion and Upgrades

One of the great advantages of the BMAX B5A Pro is its expandability:

• RAM: 2 SODIMM DDR4 slots. Comes with 1 x 16 GB in single-channel configuration. Adding a second identical module activates dual-channel, with up to 25% more graphics performance. Supports up to 2 x 32 GB = 64 GB total.

• Primary SSD: M.2 NVMe slot. Replaceable with any compatible drive up to 2 TB (WD Blue SN580, Samsung 970 Evo Plus, etc.).

• Secondary drive: ✅ Includes SATA slot for 2.5" SSD/HDD drive, ideal for adding 1-2 TB of extra storage at no additional cost to the chassis.

🖥️ View Prices and Availability

🆚 Comparison with Direct Competitors

The BMAX B5A Pro is the only one on the list with triple 4K output and dual fans in this price range, making it especially attractive for multi-monitor setups and prolonged heavy use.

🗣️ Reviews on Well-Known Pages

Reviews on specialized platforms are consistently positive:

androidpc.es highlights the good cooling system and the possibilities for expansion with RAM and a secondary SATA drive as the main buying arguments.

phongluutran.de (technical review January 2025) recommends it especially for development with WSL2 and Linux environments, highlighting its stability under continuous workload.

Reddit r/MiniPCs shows a generally very satisfied community: users who use it as their main office PC especially value it, and retrogaming enthusiasts consider it one of the best options in its price range.

AliExpress has mostly 4 to 5 star ratings, with positive comments about the value for money, shipping from European warehouses, and the condition of the equipment upon receipt.

🧪 Technical Tests

CPU (Cinebench R23):

• Single-core: ~1,250 pts — solid performance for everyday tasks

• Multi-core: ~9,500–10,500 pts — comparable to a desktop Core i7-8700K

GPU (3DMark Fire Strike):

• ~2,800–3,200 pts with Vega 8 at 2000 MHz

• +15-25% improvement when enabling dual-channel RAM

Storage (CrystalDiskMark):

• Sequential read: ~2,800–3,000 MB/s

• Sequential write speed: ~1,800–2,000 MB/s

Dual-channel RAM test:
The difference between single-channel (1× 16 GB, factory configuration) and dual-channel (2× 8 GB or 2× 16 GB) results in up to +25% FPS in gaming with the Vega 8 iGPU. This is the most significant upgrade you can make for an additional ~€25-30.

Temperatures under load:

• CPU: 75-82°C in Cinebench R23 — acceptable and stable for such a compact device

• No documented throttling thanks to the Space Capsule dual ventilation system

🎮 Gaming and Emulation

The Radeon RX Vega 8 GPU at 2000 MHz offers amazing gaming performance for a mini PC at this price:

Native Games (1080p):

• 🟢 GTA V (Medium): 40-55 stable FPS

• 🟢 Fortnite (Low-Medium): 45-60 FPS

• 🟢 Doom Eternal (Low): 50-70 FPS

• 🟡 Mortal Kombat 11 (Low): 55-65 FPS

• 🔴 Cyberpunk 2077 (Low 1080p): 18-25 FPS (adjusted)

Emulation:

• 🟢 RetroArch / MAME / SNES / N64 / PS1 / PS2: perfect at 4K upscaled resolutions

• 🟢 GameCube / Wii (Dolphin): Excellent performance

• 🟡 PS3 (RPCS3): Works on many titles, requires dual-channel RAM

• 🟡 Switch (Yuzu/Ryujinx): 2D titles run well; demanding 3D games require adjustments

• 🔴 PS4 (Shadps4): Too demanding for this iGPU

For a retro gaming enthusiast who wants PS1, N64, PS2 and GameCube in 4K resolution in their living room, the BMAX B5A Pro is an excellent choice in its price range.

❓ Frequently Asked Questions (FAQ)

Can I choose between the Ryzen 7 5825U and the 5700U?
No. BMAX ships the processor randomly based on availability. Both are capable 8-core chips; the 5825U offers slightly better performance, but the 5700U is also an excellent choice.

Does Windows come activated?
Yes, Windows 11 Pro comes pre-installed and factory activated.

Can I install Linux?
Yes, it's fully compatible with Ubuntu and other distributions. AMD drivers work natively.

Does it support 3 4K monitors at the same time?
Yes, it allows you to connect three monitors simultaneously at 4K/60Hz with HDR support, one per output (HDMI, DP, USB-C).

How much does dual-channel RAM improve performance?
Up to 25% more FPS in games and graphics-intensive tasks. It's the cheapest and most recommended upgrade, simply by adding a second DDR4 SO-DIMM module identical to the one already included.

Can I add a second drive?
Yes. It has a SATA slot for a 2.5" SSD or HDD, in addition to the main NVMe slot. This requires opening the case, a simple process with a screwdriver.

🏁 Final Conclusion

The BMAX B5A Pro is the ideal choice for:

• 🏠 Home users who want a powerful and quiet PC for office work, browsing and 4K multimedia

• 🎮 Retro gaming enthusiasts looking to emulate games from PS1 to Wii/GameCube in 4K quality

• 💼 Professionals and developers who need a compact and efficient device with real performance

• 📺 HTPC for the living room with triple 4K HDR output and included VESA mount

• 🖥️ Multi-monitor setups thanks to its three simultaneous video outputs

Is it worth it at €315? Absolutely. Especially if you add a second DDR4 RAM module (an extra 16GB for ~€25-30) to enable dual-channel and unlock the full graphics potential of the Vega 8.

Alternatives to consider:

• If WiFi 6 is essential: Beelink SER5 Max (~€300-340)

• If you're looking for more power with a newer architecture: Minisforum UM773 Lite with Ryzen 7 7735HS (~€350-400)

• If the budget is tighter: GMKtec NucBox K6 with Ryzen 7 5700U (~€260-300)
