FIREBAT MINI PC AM02 Review 2026: Is this mini PC with Ryzen 5 6600H worth it?

The FIREBAT MINI PC AM02 is surprising for its power in a truly compact size.

It stands out for its solid performance, modern connectivity and DDR5 memory, although its cooling system could be better under heavy loads.

It's an excellent option for productivity, multimedia, and some gaming, as long as you're not looking for absolute silence.

👉 More information and updated price of the FIREBAT MINI PC AM02

Technical Specifications: FIREBAT AM02

Box Contents

Upon unpacking the product, you will find everything necessary for immediate use:

• 1x Mini PC FIREBAT AM02

• 1x Power adapter with power cord

• 1x HDMI Cable

• 1x VESA mounting bracket (with fixing screws)

• 1x User Manual / Quick Start Guide

Design and Construction Quality

The FIREBAT AM02 boasts an ultra-compact, cube-shaped design measuring 128 mm x 125 mm x 51 mm and weighing just 440 g. Its chassis is made of reinforced polycarbonate with a matte black finish and textured details that resist fingerprints. Its lightweight yet sturdy construction makes it ideal for easy portability or keeping your work surface tidy.

• Cooling: It integrates an active dissipation system with a copper radiator and blower -type fan , designed to expel heat through the side and rear grilles, keeping the equipment quiet during everyday tasks.

• Maintenance and Assembly: Offers easy access to the motherboard to add a second M.2 NVMe PCIe 4.0 SSD.

• Includes VESA mount to attach the Mini PC directly to the back of a monitor or stand.

Screen and Multimedia

Multimedia and screen management capabilities are among its most outstanding features:

• Triple Screen Management: Supports three 4K monitors at 60 Hz simultaneously and independently by combining HDMI, DisplayPort and front USB-C outputs (with DisplayPort Alt Mode support).

• Graphics Memory (VRAM) Adjustment: From the BIOS, it is possible to adjust the allocation of dedicated VRAM memory for the Radeon 660M from 512 MB to 8 GB, optimizing performance as required for design work, editing, or gaming.

• Multimedia Formats: The RDNA 2 architecture includes hardware decoding for AV1, VP9 and HEVC/H.265 codecs , ensuring smooth playback of 4K HDR streaming content without overloading the CPU.

• Audio: It incorporates a 3.5 mm analog combo jack output for headphones with microphone, as well as multi-channel digital audio output via HDMI and DisplayPort.

Performance and Software

Powered by the AMD Ryzen 5 6600H processor (6 cores and 12 threads up to 4.5 GHz, 6 nm Zen 3+ architecture) and 16 GB of LPDDR5 RAM, it offers a smooth response in all types of scenarios.

• Productivity and Gaming: It handles heavy multitasking, photo editing, 1080p video and eSports games at 1080p ( CS2, LoL, Valorant ) with ease, as well as AAA titles on medium/low settings using AMD FSR.

• Operating System and Security: It comes with Windows 11 Pro pre-installed, clean of bloatware, and features support for Secure Boot and installation of Linux distributions.

• Advanced Networking and Power-On Features: Includes professional-level BIOS features such as Auto Power On (automatic power-on upon receiving power) and Wake on LAN (WoL), allowing you to power on or manage the Mini PC remotely, making it ideal for automation, home servers, or workstations.

Energy Consumption

The FIREBAT AM02 stands out for its high energy efficiency thanks to the 6nm manufacturing process of the Ryzen 5 6600H.

• Idle mode: Consumes between 8W and 12W, ideal for leaving it on continuously as a server or download equipment.

• Average use (Office work / 4K streaming): Ranges between 20W and 30W.

• Maximum load (Gaming / Rendering): System consumption reaches peaks of 45W to 55W, offering substantial energy savings compared to a traditional tower computer.

Temperature and Noise

Its compact 51mm chassis incorporates a heatsink with copper conduits and a blower -type fan .

• Noise Level: In simple tasks it is practically inaudible ( ~28-32 dB ). Under maximum load the fan speeds up reaching about 40-45 dB, generating a constant but not strident blowing sound.

• Temperatures: At idle, the CPU maintains temperatures between 40°C and 48°C. During intense gaming sessions or sustained stress, temperatures range from 75°C to 85°C, within the safe limits defined by AMD for this architecture.

Internal Device Speed

• RAM Memory: Integrates 16 GB LPDDR5 working at high speed in Dual Channel configuration , offering high bandwidth essential to power the Radeon 660M iGPU.

• NVMe storage: The installed 512 GB drive operates under the PCIe 4.0 x4 interface , offering sequential read speeds close to 3,500 - 5,000 MB/s (depending on the SSD manufacturer), guaranteeing near-instantaneous load times in Windows and applications.

Gaming

The Radeon 660M's RDNA 2 architecture (6 CUs at 1900 MHz) represents a significant leap forward compared to previous Vega integrated graphics.

• eSports / Competitive Games (1080p): Titles such as Valorant, League of Legends, Rocket League or CS2 run smoothly above 60-100 FPS on medium/high quality.

• Demanding AAA Games: More demanding titles ( Cyberpunk 2077, Shadow of the Tomb Raider, Forza Horizon 5 ) are playable at 30-50 FPS by adjusting the resolution to 720p/1080p on low quality and activating AMD FSR (FidelityFX Super Resolution) technology.

• VRAM Adjustment: By being able to allocate up to 8 GB of RAM as dedicated video memory from the BIOS, texture locks are avoided in games that require a large graphics buffer.

Extensions and Maintenance

Despite its 440g form factor, the device offers solid expansion room focused on storage:

• RAM: Not expandable. The 16 GB LPDDR5 are soldered to the motherboard to maximize frequency and reduce internal space.

• SSD storage: Highly expandable (up to 8 TB total).

  • Main Slot: M.2 2280 NVMe PCIe 4.0 (replaceable from 512 GB to 4 TB).

  • Second Slot: Free M.2 2280 NVMe PCIe 4.0 (allows adding a second SSD of up to 4 TB).

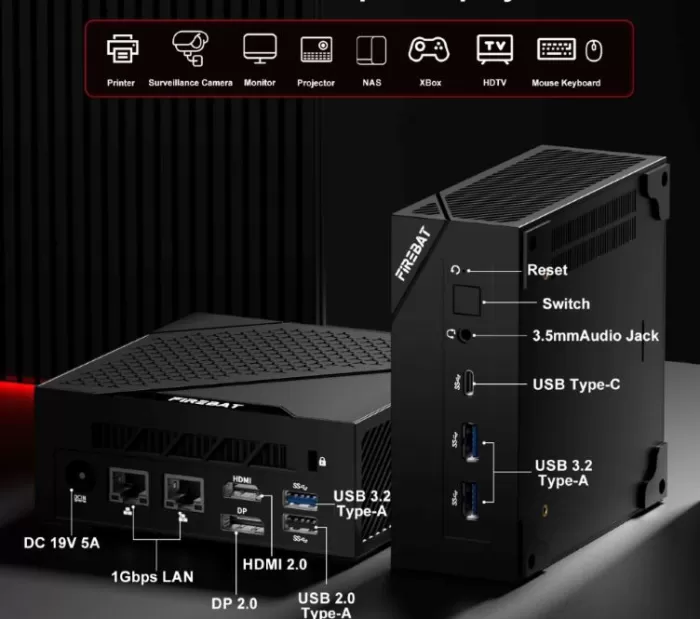

Connections and Ports

The connectivity panel allows the Mini PC to be integrated into any advanced work environment:

• Wireless: Wi-Fi 6 (high speed and lower latency in congested networks) + Bluetooth 5.2 for wireless peripherals.

• Wired Network: Dual 1Gbps RJ45 Ethernet ports, allowing it to be configured as a router, firewall, or segmented local network server.

• Summary of Physical Ports:

  • Front: 1x USB-C (Full function: data, DisplayPort video output and PD charging), 2x USB 3.2 Gen 2, 1x 3.5 mm combo audio/microphone jack.

  • Rear: 1x HDMI 2.0, 1x DisplayPort 1.4, 1x USB 3.2, 1x USB 2.0, 2x RJ45 LAN, 1x DC-IN input.

Reviews on well-known websites

1. What users value most (Positive Points)

• Power vs. Price: The combination of the Ryzen 5 6600H with the Radeon 660M graphics card is the most praised aspect. Users highlight a significant leap compared to similarly priced Mini PCs equipped with Intel N-series processors (like the N100) or older Ryzen processors.

• Ease of Storage Expansion: They frequently mention how easy it is to open the bottom to install a second M.2 SSD.

• Smoothness and Instant Boot: The PCIe SSD boots Windows 11 Pro in seconds and maintains very fast multitasking for office work, heavy browsing, programming, and lightweight virtual machines.

• Multi-monitor capabilities: The flexibility to connect 3 independent displays (HDMI, DP and USB-C) is highly valued by professionals who work remotely or perform data analysis.

2. Critical Points and Frequent Complaints

• Fan Noise Under High Load: Although it is virtually inaudible at idle, when the CPU/GPU is under maximum load (heavy gaming or rendering), the fan speeds up, emitting a high-pitched whistling sound.

• High Temperatures in Stress Tests: In continuous, high-demand tests (such as AIDA64), the CPU reaches 85°C - 95°C. Although it doesn't experience severe throttling, several users recommend adjusting the TDP in the BIOS or using high-quality thermal paste to keep it below 80°C.

• Plastic Construction: Although it is solid and well finished, some users point out that the casing is entirely made of polycarbonate and does not convey the "premium" feel of aluminum chassis.

• Brand Support: As with Asian direct-distribution brands (Firebat, Chattreey, etc.), customer service and warranty support can be slow compared to traditional brands.

3. Average Community Verdict

The overall rating is 4.4/5. This Mini PC is highly recommended for those seeking maximum computing power for their money and prioritizing CPU/iGPU performance over fan noise during demanding tasks.

💬 Most interesting comments from real users

• "I'm surprised by how fast it is. I use it for programming and lightweight virtual machines without any problems."

• "For a mini PC, the graphics performance is very decent. It's not for modern AAA games, but it's perfect for Fortnite, Valorant, or Rocket League."

• "It gets a little hotter than I'd like when I'm rendering video."

• “Installing the additional SSD was very easy.”

• “Compact, powerful, and affordable. Just what I was looking for for my minimalist setup.”

👉 More information and updated price of the FIREBAT MINI PC AM02

Summary of technical tests

1. Synthetic CPU Tests (Processor Performance)

• Cinebench R23:

  • Single-core: ~1,450 - 1,520 points. Demonstrates great performance per core thanks to the 6nm Zen 3+ architecture.

  • Multi-core: ~8,800 - 9,200 points. It keeps its 6 cores / 12 threads working stably, sustaining boost frequencies above 4.1 - 4.2 GHz in the first few minutes.

• Geekbench 6:

  • Single-Core: ~1,950 - 2,050 points.

  • Multi-Core: ~7,200 - 7,600 points.

• PassMark CPU Mark: ~18,000 points. It is approximately 30% faster than popular previous generation chips like the Ryzen 5 5600U and more than 4 times more powerful than entry-level processors like the Intel Alder Lake N100.

2. Graphics Tests (Radeon 660M iGPU)

• 3DMark Time Spy (Graphics Score): ~1,550 - 1,620 points. It outperforms the integrated Intel Iris Xe (80 EUs) and crushes the older AMD Radeon Vega 7/8.

• 3DMark Fire Strike: ~4,200 - 4,500 points.

3. Storage Tests (SSD NVMe M.2)

Tests performed with CrystalDiskMark on the factory-installed PCIe 4.0/3.0 SSD yielded the following average values:

• Sequential Read: ~3,300 - 3,600 MB/s

• Sequential Write: ~2,000 - 2,500 MB/s

  (Note: Replacing or adding a high-end M.2 PCIe 4.0 x4 SSD in the second free slot can achieve read speeds of up to 5,000 - 7,000 MB/s).

4. Stress, Thermal and Power Consumption Tests (AIDA64 / Prime95)

• Energy Consumption:

  • At rest ( Idle ): 9 W - 11 W.

  • In sustained stress test (CPU+GPU): Reaches initial peaks of 65 W for a few seconds and stabilizes at 45 W - 54 W.

• Temperatures and Thermal Throttling:

  • Rest / Light load: 37 °C - 45 °C.

  • Maximum Stress (AIDA64 / Cinebench loop): Reaches peaks of 85 °C to 95 °C. The system maintains performance without suffering critical thermal throttling that would shut down the equipment, but the fan operates at its maximum speed.

• Advanced User Optimizations: Many analysts recommend replacing the stock thermal paste with a high-conductivity paste (such as Arctic MX-6 or Noctua NT-H2) and/or limiting the TDP in the BIOS to 35W-40W. This reduces maximum temperatures to approximately 78°C-80°C with less than a 5% performance loss and significantly reduces fan noise.

🆚 Comparison with Direct Competitors

✅ Recommended accessories for your FIREBAT AM02

🔌 “Basic but essential” peripherals

TITAN ARMY P2418C 23.8″ Monitor

The TITAN ARMY P2418C 23.8″ monitor with FHD (1920×1080) IPS panel and 144Hz refresh rate offers a remarkably smooth and crisp experience in office, browsing, or intensive work environments.

Its IPS panel delivers consistent colors and wide viewing angles, ideal for light design work or image editing; while the 144 Hz refresh rate is especially noticeable when combined with a mini PC like this one, improving the feeling of speed and smoothness when scrolling through windows, browsing, or working with multiple programs.

In 16:9 format and with a flat design, it is practical, versatile and easy to integrate into compact desktops.

In short: a simple yet effective monitor, perfect for daily productivity or as the main screen in a minimalist setup.

👉 See prices for Titan Army P2418C

Television/monitor BSL-24T2SV VIDAA Smart TV 24″ Full HD

The BSL-24T2SV VIDAA Smart TV 24″ Full HD television/monitor is an interesting option if you plan to use the FIREBAT MINI PC AM02 as a multimedia center or compact workstation.

Thanks to its FHD resolution (1920×1080), HDMI input and wired (RJ45) or Wi-Fi connectivity, you can connect it without problems to browse, work, watch movies or use streaming applications.

Its 24-inch size offers an ideal balance between desktop space and visual comfort, and when combined with a powerful mini PC, you get a smooth experience for both office tasks and multimedia.

👉 See prices for the BSL-24T2S  TV/monitor

🔄 Improved connectivity and functionality

• USB C to 4K Hub Compatible with HDMI USB 3.0 2.0 Type C  — If you want to expand ports, a docking station is very useful — especially if you plan to connect many peripherals: monitor, external drive, keyboard, mouse, etc.

💾 Fast storage and transfers

• SanDisk Portable External SSD 1TB — A USB-C compatible external SSD: great for expanding storage, backing up, or working with large files without overloading your internal SSD.

🔧 Other interesting accessories

Beyond monitors, hubs, or hard drives, there are other accessories that can enhance your experience:

• Wireless or compact keyboard and mouse: essential if you want to keep your desk clean and tidy.

  • Try the TEMCO KW02 Wireless Keyboard Kit with Mouse with signal transmission up to 10 meters.

• A good set of external speakers or headphones: to improve sound (movies, editing, calls).

  • The PHONEPACE computer speaker offers clear stereo sound and a built-in microphone, ideal for calls and multimedia. With a 3.5mm AUX input, it's compact and practical for desktop use. Highly recommended for its value.

• VESA mount or mounting behind monitor/TV: some mini PCs allow you to mount them behind a screen, leaving your desk very clean.

• Additional cooling system or ventilated base: If you're going to use the PC for intensive tasks or long sessions, this can help maintain more comfortable temperatures.

• UPS or stable power supply: useful if you use the mini PC as a home server, NAS, or for critical work.

🎯 Who are these accessories suitable for?

Final conclusion

The FIREBAT MINI PC AM02 is ideal for:

• Users looking for a small but powerful computer.

• Offices and teleworking with heavy multitasking.

• Students and creators of light content.

• Casual gamers who want to play eSports titles.

It's not the best option if you need:

• An absolutely silent system.

• GPU performance at the level of a gaming PC.

• A premium brand ecosystem.

It's worth it?

Yes, it is undoubtedly one of the best value-for-money options in mini PCs with Ryzen 6600H.

👉 More information and updated price of the FIREBAT MINI PC AM02
