GMKtec NucBox M7 Ultra Mini PC Review 2026: OCuLink + USB4 + Radeon 680M

The GMKtec NucBox M7 Ultra is one of the most complete mini PCs in terms of connectivity in its price range in 2026.

With the AMD Ryzen 7 PRO 6850U (8 Zen 3+ cores), the powerful integrated Radeon 680M 12-core RDNA2 GPU, 2× USB4 ports , OCuLink for external eGPU and 2× 2.5 Gbps LAN , it offers a combination of features that many twice the price of PCs cannot match.

It's a direct evolution of the standard M7, with better connectivity and more generous RAM and storage configurations.

Quick conclusion: If you prioritize advanced connectivity, eGPU versatility, and high-speed networking in a compact chassis, the M7 Ultra is a truly unrivaled proposition at its price.

👉 See GMKtec NucBox M7 Ultra

📋 Technical Specifications

🏗️ Design and Construction Quality

The NucBox M7 Ultra follows the understated and professional visual language of the GMKtec line: discreet, functional, and unpretentious. The body combines metal sides with high-quality plastic top and bottom covers, providing sturdiness without adding weight. Notebookcheck summarizes it this way: "The combination of a metal body and plastic elements on the top and bottom is a success and gives the mini PC great stability with little weight. "

The front power button is the only distinguishing element of the design; the rest of the chassis is completely minimalist. It includes a VESA mount for attaching it behind the monitor. The only recurring aesthetic criticism is that it's not made entirely of aluminum on all surfaces, unlike more expensive options on the market, although the overall feel in hand is of a well-finished product.

🖥️ Screen and Multimedia

The M7 Ultra supports triple simultaneous video output thanks to the combination of HDMI 2.0, DisplayPort, and two USB4 ports. This makes it ideal for multi-monitor setups for work, trading, or design without the need for external adapters.

The Radeon 680M with 12 RDNA2 cores offers hardware decoding of AV1, HEVC, and H.264, perfect for smooth 4K HDR playback on platforms like Netflix, YouTube, and Plex. Notebookcheck also highlights its exceptionally low DPC latencies , making it an excellent choice as a professional audio/video streaming client or HTPC. It does not include built-in speakers; audio output is via a 3.5mm jack, HDMI, or DisplayPort.

🚀 Performance and Software

💻 Productivity and daily use

The Ryzen 7 PRO 6850U with Zen 3+ at 28W offers consistent performance without degradation under continuous load. Notebookcheck verified that "even under continuous load, power consumption does not drop and full performance is available at all times ," something not all mini PCs in its price range can guarantee.

The difference compared to more modern Zen 4 chips exists (around 15% in CPU benchmarks), but in everyday use—browsing with multiple tabs, office applications, video calls, photo editing—this difference is practically imperceptible. With 32 GB of dual-channel DDR5 RAM, it is especially capable for heavy multitasking, virtualization, and development.

🎮 Gaming

The 12-core RDNA2 Radeon 680M is the M7 Ultra's strongest point for gaming. TechEBlog describes its performance as "almost on par with a GTX 1050 Ti, with the added support of FSR 3.0 ." The YouTube channel nicolas11x12, after testing the NucBox M7 with the same chip, concluded: "Some games can run at higher graphics settings on this device... it's one of the best Mini PCs I've ever tested. "

• CS2, Valorant, League of Legends: 60–130 FPS at 1080p ✅

• Borderlands 2 (High + FSR): 80–130 FPS ✅

• Subnautica (Medium): 60–80 FPS ✅

• Rise of the Tomb Raider (Low): average 68 FPS ✅

• Demanding AAA games (Low + FSR): 30–50 FPS ⚠️

• Retro emulation (PS2, GameCube, Switch): Excellent ✅

💡 OCuLink: By connecting an external eGPU (RX 7600, RTX 4060) via the OCuLink dock, gaming performance is exponentially increased, transforming the M7 Ultra into a serious gaming machine. TechEBlog highlights that OCuLink offers "faster transfer speeds and less lag than Thunderbolt 3" .

🪟 Windows 11 and Software

Windows 11 Pro pre-installed and activated, with a clean installation of no bloatware. The experience is plug-and-play from the first boot. It is recommended to update drivers from the official GMKtec website after initial setup, and to check the TDP profile in the BIOS to adjust the performance/noise balance according to usage.

🔋 Energy Consumption and Cables

The Ryzen 7 PRO 6850U is the U (low power) variant of the chip, which translates into a very efficient energy profile:

• CPU TDP: 28W (compared to 45W for the standard M7's 6850H)

• Under sustained load: stable performance without throttling ✅

• Peak CPU temperature: ~85°C — within safe limits

• Thermal throttling: Not detected under continuous load

• Fan noise: audible under load; adjustable from BIOS

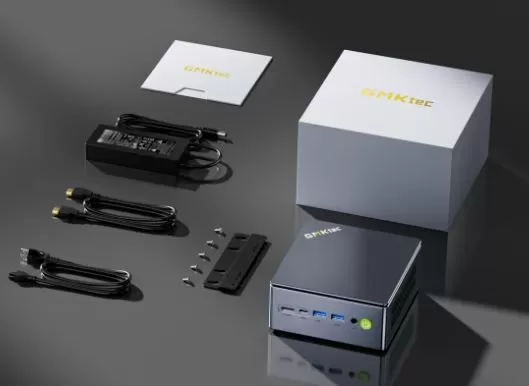

• Adapter included: 120W DC

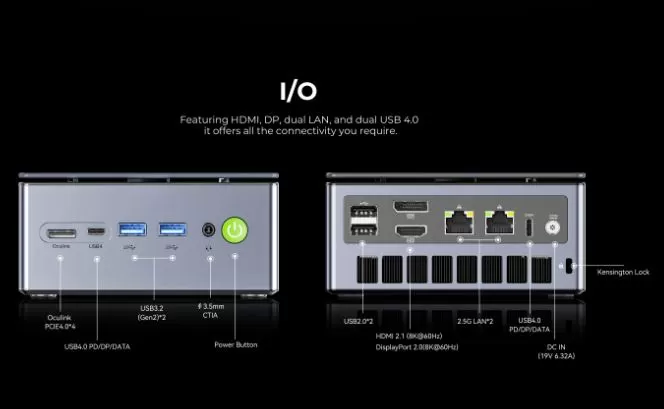

🔌 Connectivity and Ports

Connectivity is the M7 Ultra's strongest selling point and what justifies choosing it over more modern CPU alternatives:

Front panel:

• 2× USB 3.2 Gen2 Type-A

• 1× 3.5mm combo jack

• Power button

Rear panel:

• 1× HDMI 2.0

• 1× DisplayPort

• 2× USB4 (40 Gbps, video + data + charging)

• 2× USB 2.0 Type-A

• 1× OCuLink port  (external eGPU)

• 2 x RJ-45 LAN 2.5 Gbps

• 1× 3.5mm jack output

Wireless:

• WiFi 6E (802.11ax, tri-band · MediaTek MT7922)

• Bluetooth 5.2

⚠️ Without: NFC, SD card reader, integrated fingerprint sensor, or IP certification.

💡 Key fact: having 2× USB4 + OCuLink + 2× 2.5G LAN in a mini PC for less than $470 is practically exclusive to the NucBox M7 Ultra in the market.

💬 Reviews on Well-Known Pages

⭐ Notebookcheck — Recommended · Feb 2026

"The GMKtec NucBox M7 Ultra presents itself as a compact and well-balanced all-rounder with good features and a coherent overall package. Extensive connectivity, which opens up additional options with USB4 and OCuLink, sets new standards in this price range. "

⭐ TechRadar — 3.5/5 · Jan 2026

"The NucBox M7 Ultra remains competitive in connectivity, even though the Ryzen 7 PRO 6850U is a 2022 chip. For those who don't need the latest CPU and prioritize ports and versatility, it remains a solid option. "

⭐ Neowin — 8/10

"OCuLink, 32 GB DDR5, 1 TB and USB4, all for $470. A deal hard to ignore for anyone looking for maximum versatility in a mini form factor. "

⭐ TechEBlog — Highly recommended

"This little beast shines in performance: the Radeon 680M with 12 Compute Units is almost on par with a GTX 1050 Ti. The OCuLink port offers faster transfer speeds and less lag than Thunderbolt 3. "

⭐ YouTube — GMKtec M7 Ultra Review (Dec 2025)

"A Ryzen 7 mini PC that can handle 1080p gaming, content creation, emulation, and external GPUs. The best budget mini PC tested to date. "

⭐ Reddit r/MiniPCs — Mostly positive

The community particularly appreciates the combination of OCuLink + 2x USB4 ports and dual 2.5G LAN. The most frequent debate is whether to choose the M7 Ultra (6850U, more efficient, up to 64 GB RAM) or the M7 Pro (6950H, more powerful CPU, up to 96 GB RAM). For general use without extreme virtualization, most recommend the Ultra for its connectivity and efficiency.

🧪 Technical Tests

🧠 CPU Benchmarks

The Ryzen 7 PRO 6850U Zen 3+ at 28W offers solid multi-core performance for its price and TDP class. It's approximately 15% below Zen 4 chips like the Ryzen 9 7940HS in synthetic benchmarks, but in everyday use the difference is barely noticeable.

Relative performance compared to competitors

🖥️ GPU Benchmarks — Radeon 680M

The Radeon 680M with 12 RDNA2 cores is consistently more powerful than the 8-core Radeon 760M found in Zen 4 systems like the MINISFORUM UM760 Plus, especially in sustained graphics workloads.

Gaming tested (1080p)

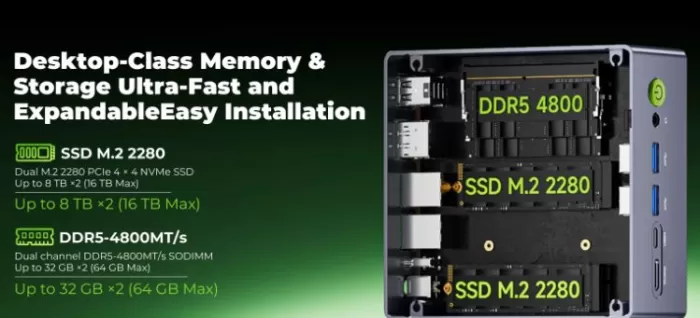

💾 Storage Speed

The pre-installed NVMe PCIe Gen3 SSD is functional but does not reach the speeds of the latest PCIe Gen4 drives:

For increased speed, the second free M.2 2280 slot allows you to add a higher-performance PCIe Gen3/Gen4 SSD.

🌐 Connectivity — Network and USB4 Test

🌡️ Temperatures and Noise

🎯 Final Conclusion

 As of February 2026, the GMKtec NucBox M7 Ultra is the mini PC with the best connectivity-to-price ratio  on the market. Its combination of 2 x USB4 ports, OCuLink, and 2 x 2.5G LAN ports in a chassis priced under $470 has no direct competitor in its segment. The Ryzen 7 PRO 6850U chip is a Zen 3+ (2022) generation processor, which represents a slight compromise compared to more modern chips, but in everyday use, the difference is negligible.

Who is it ideal for?

• 👨‍💼 Professionals with multiple monitors and advanced networking needs (dual 2.5G LAN)

• 🎮 Gamers who want to connect an eGPU via OCuLink for serious gaming

• 📺 HTPC users for living room with 4K television

• 🖥️ Virtualization and development environments (32 GB DDR5 dual channel)

• 💰 Budget-conscious buyers who don't want to sacrifice connectivity

Alternatives to consider:

• GMKtec NucBox M7 Pro → same manufacturer, Ryzen 9 PRO 6950H, more CPU cores, up to 96 GB RAM

• Beelink SER8 → Ryzen 7 8745HS (Zen 4), newer Radeon 780M GPU, no dual LAN or OCuLink

• MINISFORUM UM760 Plus → More modern Zen 4 CPU, but only 1× USB4 and 1× 2.5G LAN
