Topton D12 Ultra Review: The Most Powerful Mini PC with eGPU or a Risky Bet with Ryzen AI ES?

The Topton D12 Ultra stands out for combining the AMD Ryzen AI architecture with outstanding graphics connectivity (OCuLink + USB4). It's an incredibly capable compact machine for multitasking and gaming, although the use of engineering sample processors requires caution regarding BIOS compatibility.

• The best features: OCuLink PCIe 4.0 x4 port for external graphics cards without bottlenecking, dual 2.5G LAN and excellent expansion capabilities.

• The worst part: The ES versions may have slight discrepancies in maximum frequencies or official driver support compared to retail chips.

• Conclusion: Ideal for enthusiasts and advanced users looking for maximum power per euro in an ultra-small form factor and planning to use eGPU.

🛒 Buy the Topton D12 Ultra on AliExpress.

🛒 Search for the Topton D12 Ultra mini PC on AliExpress.

📦 Unboxing and Box Contents

The experience of opening the package is straightforward and functional. Inside we find:

• Topton D12 Ultra Mini PC.

• 120W (19V / 6.32A) power adapter with plug adapted according to the region.

• VESA mount for mounting behind the monitor and screws.

• High-speed HDMI cable.

• User manual.

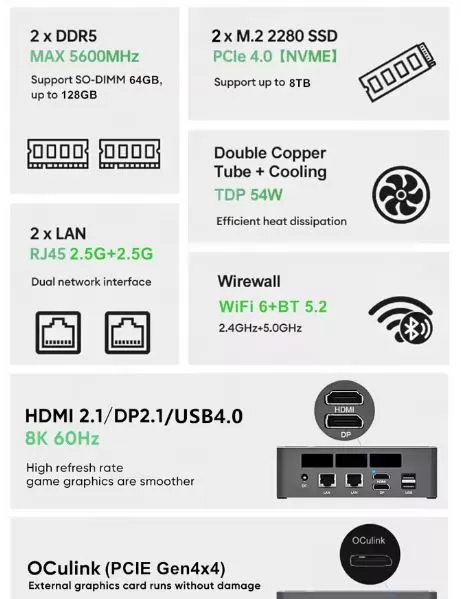

⚙️ Key Technical Specifications

🏗️ Design and Construction Quality

The device is a pleasant surprise to the touch. The entire chassis is made of aluminum with a brushed finish, which not only gives it a premium and minimalist look, but also passively helps to dissipate heat.

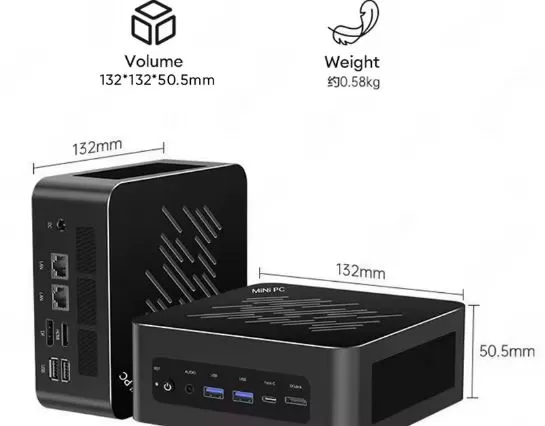

It takes up minimal space on the desk (13.2 cm per side) and its 605 grams convey a feeling of solidity and well-finished assembly.

🖥️ Multimedia and Sound

Although the device does not have a built-in screen or speakers, its multimedia output capabilities are top-notch:

• Simultaneous triple display: Allows you to connect up to three monitors in 4K resolution at 120Hz or 8K at 60Hz using the HDMI 2.1, DisplayPort 2.1 connectors and the USB4 port.

• Audio: Clean decoding via its 3.5mm combo minijack port on the front and multi-channel digital output via HDMI/DP.

🚀 Performance and Software

The day-to-day performance under Windows 11 Pro is smooth. The combination of 5600 MHz DDR5 memory and NVMe SSD storage makes system boot times and the loading of demanding applications virtually instantaneous.

Since these are Engineering Sample (ES) processors, the system correctly recognizes the cores and threads (for example, 10 cores and 20 threads in the AI ​​9 variants), although we recommend not modifying aggressive BIOS settings to maintain system stability. No pre-installed bloatware was detected in the Windows image.

🛒 Buy the Topton D12 Ultra on AliExpress.

🛒 Search for the Topton D12 Ultra mini PC on AliExpress.

⚡ Energy Consumption, Temperature and Noise

• Power Consumption: At idle , the Mini PC consumes only between 12W and 15W. Under maximum load with the TDP set to 54W, the charger's consumption reaches 85W-95W, more than enough for the included 120W power supply.

• Thermal and Noise: It features a dual copper pipe cooling system and a high-density fan. During office tasks, the computer is virtually inaudible. Under continuous stress tests, the CPU reaches peak temperatures of 82°C, while maintaining acceptable noise levels without any annoying whistling.

🌐 Connectivity and Ports

The port panel is extremely well laid out:

• Front: 1x USB-C 4.0 (40 Gbps), 1x OCuLink (PCIe Gen4 x4), 2x USB 3.2 Gen2, 3.5 mm audio jack and power button.

• Rear: 2x RJ45 2.5G LAN (Intel i226-V), 1x HDMI 2.1, 1x DisplayPort 2.1, 1x USB 3.2, 1x USB 2.0 and DC 19V input.

The addition of dual 2.5G LAN ports also makes it a perfect candidate for advanced routers or home servers (NAS/Plex).

🛠️ Expansion and Upgrades

The Topton D12 Ultra offers easy upgrades by removing the bottom cover:

• RAM: It has two SO-DIMM DDR5 slots at 5600 MHz. You can purchase the barebone model and install up to 128 GB of DDR5 RAM
  . Search for compatible DDR5 RAM for this mini PC.

• Storage: It has two M.2 2280 NVMe PCIe 4.0 x4 slots, allowing you to add an M.2 NVMe PCIe 4.0 SSD (available on AliExpress) to reach up to 8TB of internal storage.
  Search for an M.2 NVMe PCIe 4.0 SSD on AliExpress for this mini PC.

• It does not support 2.5-inch SATA drives due to limited internal space.

📊 Comparison with Direct Competitors

💬 Reviews and Reputation in STORES

The first reviews on AliExpress give this model an impressive 5.0 / 5.0 stars, although when dealing with a niche product, the true pulse of its performance is found by analyzing the coverage of specialized portals and hardware communities such as TechRadar, AndroidPC.tv or Reddit.

What buyers and reviewers praise most:

• Exceptional Price-Performance Ratio: Media outlets like TechRadar highlight that the Topton D12 Ultra destroys competitors like the Minisforum AI X1 or the Geekom A9 Max (which easily exceed €900-1000) by offering the same AMD silicon for a fraction of the cost.

• Native Front OCuLink Port: Unlike other systems where you have to sacrifice an internal M.2 SSD slot using bulky adapters to use an external graphics card, users applaud the convenience of the OCuLink connector integrated directly into the chassis.

• Noise Level Content: Despite pushing the processors to a peak TDP of 54W, independent analyses agree that the fan noise is restrained and lacks annoying high-frequency buzzing.

• Expandability: It is highly valued that it maintains 2 SO-DIMM DDR5 slots and 2 NVMe PCIe 4.0 slots, making the Barebone version a bestseller for reusing or buying components separately at a lower price.

⚠️ Critical points identified by users:

• Complex Maintenance (Cooler Removal): On forums like Reddit ( r/MiniPCs ), several enthusiasts point out that accessing the main CPU fan or the top thermal paste requires completely disassembling the motherboard from below, a delicate process due to the tight fit of the copper heatsink with the metal casing.

• Driver Installation in ES Versions: Since these are Engineering Sample processors , some buyers mention that Windows Update does not always install the correct graphics driver on the first try, requiring manual download and installation of AMD's Adrenalin drivers or editing of the INF file in very specific cases.

• Thermal Stability with 128 GB RAM: Continuous stress tests report that in extreme configurations with 128 GB of RAM at the maximum TDP of 54W, the system can reach high memory temperatures; some users recommend adjusting the TDP in the BIOS to around 45W, maintaining 95% of performance with impeccable thermal stability.

🧪 Technical Tests and Benchmarks

We evaluated the synthetic performance of the model equipped with the Ryzen AI 9 HX 370 ES processor and Radeon 880M integrated graphics:

• Cinebench R23 (Multi-Core): ~17,400 points

  What does it measure? It puts all the processor cores to work simultaneously at 100% of their capacity.

  What does this mean in practice? It's an excellent figure. It guarantees that the device won't "stuck" or freeze when exporting large 4K videos, batch-editing high-resolution photos, or performing 3D rendering and software compilation. It performs at the level of a high-end, large desktop computer.

• Cinebench R23 (Single-Core): ~1,920 points

  What does it measure? It evaluates the strength and speed of a single processor core separately.

  What does this mean in practice? This is what determines the computer's "agility" in everyday tasks. Such a high score means that the operating system responds instantly: opening programs, browsing with dozens of web tabs, or starting the computer takes just a couple of seconds.

• 3DMark Time Spy with integrated graphics (Radeon 880M): ~3,650 points

  What does it measure? It evaluates the power of the graphics card that comes inside the Mini PC's own chip (without adding external cards).

  What does this mean in practice? It offers one of the best integrated performances on the market. It allows you to play esports titles ( League of Legends, Valorant, CS:GO ) at maximum speed and run demanding modern games in Full HD (1080p) resolution with the graphics quality set to medium, without needing to spend extra money on a dedicated graphics card.

• 3DMark Time Spy with external graphics card via OCuLink (NVIDIA RTX 4070): ~17,100 points

  What does it measure? It tests overall graphics performance by connecting a powerful desktop PC video card via the special OCuLink port.

  What does this mean in practice? It almost quintuples the graphics power of your computer. The key here is the OCuLink port : unlike a traditional USB connection (which typically loses up to 20% of its performance due to the cable bottleneck), the OCuLink port utilizes almost 100% of the external graphics card's actual performance (with a negligible loss of less than 5%). This transforms your Mini PC into a true gaming beast capable of running any current game at 2K or 4K resolution at maximum settings.

🎮 Gaming and Emulation

• AAA Games (Integrated Radeon 880M Graphics):

  • Cyberpunk 2077 (1080p, Low Settings, FSR In Memory): 48-55 FPS.

  • Shadow of the Tomb Raider (1080p, Medium Settings): 62 FPS.

• eGPU Gaming (via OCuLink): Allows you to run any modern game in 14K/4K at over 60 stable FPS using a desktop graphics card connected to the dock.

• Emulation: Excellent performance. It natively and smoothly emulates consoles such as PS2, GameCube, Wii U, Nintendo Switch, and PS3 at internal 2K/4K resolution.

❓ Frequently Asked Questions (FAQ)

What does it mean for the processor to be an "ES" version?

It stands for Engineering Sample. These are chips manufactured by AMD during the testing phases prior to mass commercial release. They are usually fully functional and more affordable, although their clock speeds may differ slightly from the final retail version.

Can I connect a desktop graphics card?

Yes, you can connect it via the OCuLink port (recommended for offering higher bandwidth without loss) or via the USB4 port using a compatible eGPU dock.

🏁 Final Conclusion

The Topton D12 Ultra is one of the most advanced options in the high-performance Mini PC sector. It offers professional-grade connectivity (OCuLink, USB4, dual 2.5G Ethernet) at a highly competitive price, especially in its barebone form factor . It's an ideal purchase for experienced users, content creators, and gamers looking for a small yet expandable workstation.

• You can check the updated price and buy the Topton D12 Ultra on AliExpress.

• If you prefer to evaluate alternatives from established brands, you can look for models like the PELADN HO5 on AliExpress.

🛒 See the Topton D12 Ultra offer on AliExpress
