🚀 Ninkear M8 Review Mini PC with AMD Ryzen 7 8745HS

The Ninkear M8 mini PC stands out for offering outstanding multi-threaded performance and top-tier Radeon 780M integrated graphics within a compact and extremely quiet chassis.

• The best features: Excellent power/price ratio, Radeon 780M graphics suitable for 1080p gaming and emulation, dual 2.5G LAN ports and ultra-low noise level (<38 dB).

• The worst part: It only has one M.2 slot for SSD (forcing you to replace the drive to expand storage) and the memory comes from the factory in a Single-Channel configuration of 16 GB.

• Conclusion: An ideal option as a compact workstation, 4K/8K media center, or PC for light gaming and emulation, provided you consider adding a second RAM module to enable Dual-Channel.

🛒 Where to buy the Ninkear M8 at the best price?

• See the available offer for the Ninkear M8 mini PC on Amazon.

• See the available offer for the Ninkear M8 mini PC on Amazon UK.

• View prices for the Ninkear M8 mini PC on AliExpress

📦 Unboxing and Box Contents

The Ninkear M8 comes in a simple and compact package. Inside, you'll find everything you need to start working right away:

• 🖥️ Ninkear M8 Mini PC

• 🔌 External power adapter (DC 19V)

• 🖥️ High-speed HDMI cable

• 🛠️ VESA mounting bracket (with included screws to attach the PC behind a monitor)

• 📖 User manual and quick start guide

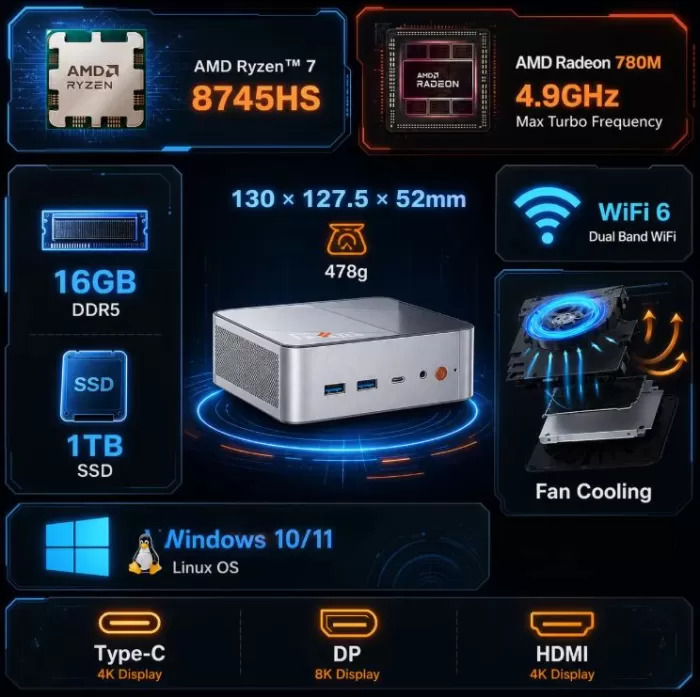

📋 Technical Specifications Table

👉 Interested in purchasing the device? Check availability on Amazon or take advantage of import offers on AliExpress.

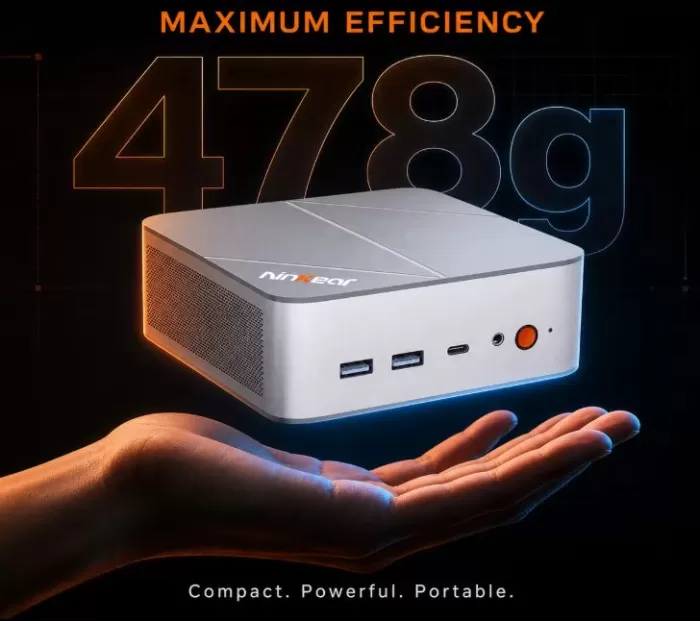

🎨 Design and Construction Quality

The Ninkear M8 features a sleek, modern design in a dark tone. Its dimensions of 130 x 127.5 x 52 mm and its light weight of 478 grams allow it to fit on any desk without taking up valuable space.

• Materials: Chassis made of reinforced high-density polycarbonate with a matte finish, resistant to fingerprints.

• Feels in hand: It feels solid, well assembled, and doesn't creak when pressure is applied.

• Airflow: It features side ventilation grilles and a rear hot air outlet to maintain optimized thermal flow.

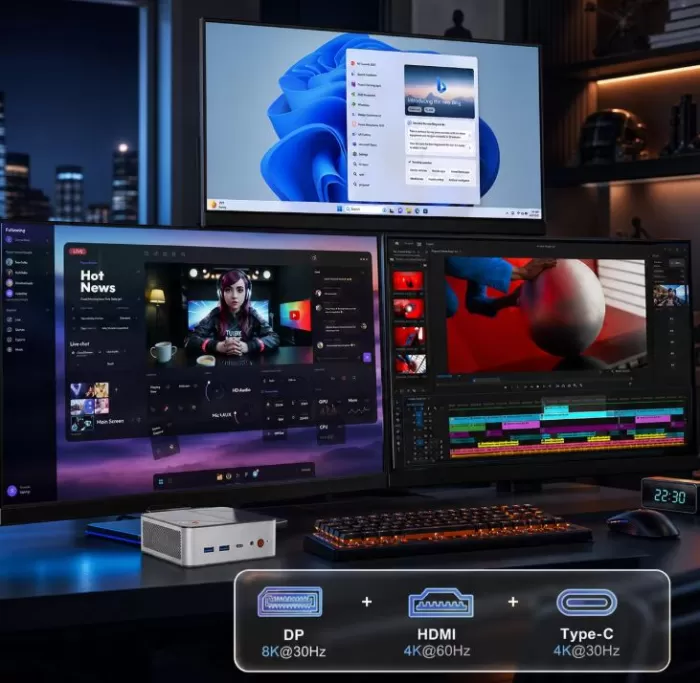

📺 Screen and Multimedia

Although Mini PCs do not include their own screen, the Ninkear M8 excels at managing external monitors:

• Triple 4K Display or 8K Output: Thanks to its HDMI, DisplayPort 2.0 and multi-function USB-C ports, it allows you to connect up to three 4K monitors at 60Hz or one 8K display.

• Audio: Includes a combined 3.5mm headphone/microphone minijack connector on the front, with clean, interference-free HD audio decoding.

⚡ Performance and Software

The heart of this machine is the AMD Ryzen 7 8745HS with 8 cores and 16 threads. Multitasking, heavy browsing with dozens of tabs, and 1080p photo/video editing are incredibly smooth.

• Operating System: It comes with Windows 11 Pro pre-installed and activated, free of bloatware (pre-installed junk programs). It boots up and sets up in minutes. It also offers full support for Linux distributions like Ubuntu.

• Storage Speeds: The included 1TB NVMe PCIe SSD delivers high read and write speeds, ensuring system boot times of less than 10 seconds.

🔌 Energy Consumption, Temperature and Noise

Consumption

The processor operates with an optimized TDP of approximately 35-45W under load. The 19V power adapter provides stable power with low power consumption compared to a traditional desktop computer.

Thermal Management

• Cooling System: Uses a copper heatsink with heatpipes assisted by a smart turbine fan.

• Noise Level: During office tasks or video playback, the fan is virtually inaudible. In maximum stress tests, the noise generated remains below 38 dB, making it ideal for quiet work environments.

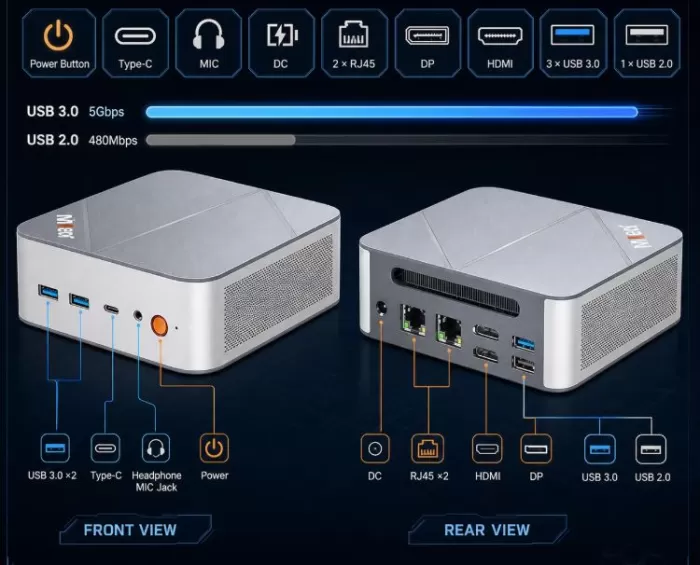

🌐 Connectivity and Extras

• I/O Ports: Wide variety of ports for peripherals (3x USB 3.0, 1x USB 2.0 and 1x USB-C).

• Dual Network (Dual 2.5G LAN): Allows you to configure the device as a home server, NAS or advanced router (firewall/router).

• Wireless: High-speed Wi-Fi 6 and Bluetooth 5.2 for wireless peripherals.

• Video and Audio: 1 HDMI, 1 DP 2.0, 1 Type-C, 1 audio Jack.

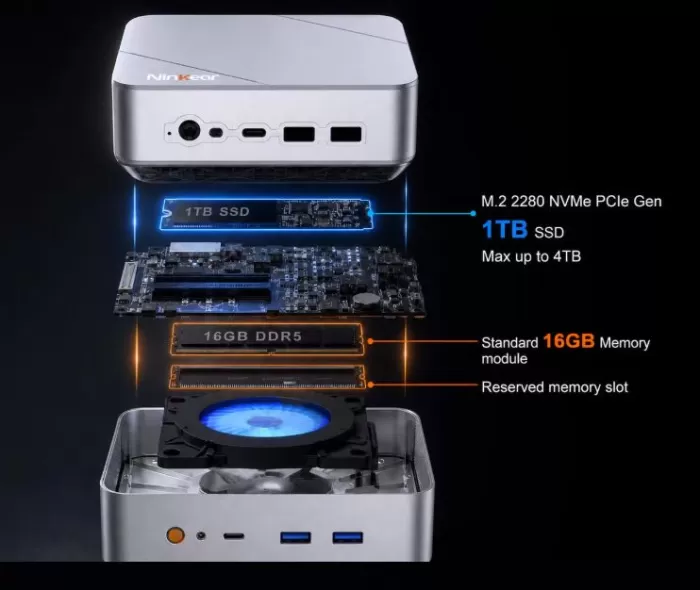

🛠️ Expansion and Upgrades

It's important to know the hardware upgrade potential of the Ninkear M8 before buying:

1. RAM Memory

• Factory capacity: 16 GB DDR5 in a single module.

• Expansion: The motherboard has two SO-DIMM DDR5 slots. You can add a second module to reach 32GB (2x16GB) or upgrade to a maximum of 64GB DDR5 (2x32GB).

• Benefit: Adding a second module activates Dual-Channel, which doubles the memory bandwidth and significantly improves the performance of the Radeon 780M graphics.

• 🛒 Buy DDR5 SO-DIMM RAM modules on AliExpress

2. SSD Storage

• Factory capacity: 1 TB SSD M.2 2280 NVMe.

• Expansion: It has a single M.2 2280 NVMe PCIe slot. It does not include a 2.5" drive bay or a second M.2 slot. To expand storage, you will need to replace the 1 TB SSD with a higher capacity one (it supports up to 4 TB ).

• 🛒 Buy M.2 NVMe PCIe 4.0 SSDs on AliExpress

📊 Comparison with Direct Competitors

👉 Explore competitive models like the Beelink SER6 on AliExpress or the GMKtec NucBox K8 on AliExpress.

💬 Opinions and Ratings in the Community

The Ninkear M8 has generated a lot of buzz in tech communities like Reddit (r/MiniPCs), ForoHardware, Trustpilot, and the review sections of major online retailers. The general consensus positions this device as one of the most attractive Mini PCs with an 8000 series Ryzen processor in terms of value for money, although some buyers have pointed out some caveats.

🌟 Most Frequently Repeated Positive Points

• Unbeatable Performance/Price Ratio: Users consistently highlight that getting an AMD Ryzen 7 8745HS processor with Radeon 780M graphics architecture below the usual price range of its direct competitors is its biggest selling point.

• Excellent Thermal and Noise Performance: Ninkear's heat dissipation is frequently praised in specialized forums. Multiple buyers point out that, unlike other Chinese Mini PCs that become noisy under load, the Ninkear M8 keeps the fan at a soft whisper that doesn't disturb a quiet desk.

• Dual 2.5G Network Versatility: In communities like Reddit, the inclusion of two 2.5 Gbps RJ45 Ethernet ports is a feature widely praised by networking enthusiasts. Many users report having purchased it not only as a desktop PC, but also as a home server ( Home Assistant, Proxmox, Plex Media Server ) or as an advanced router/firewall.

• Construction and VESA Mounting: Buyers appreciate the sturdiness of the chassis and the inclusion of the VESA mount in the box, which allows it to be attached behind the monitor and leave the desk completely clear.

⚠️ Areas for Improvement and Common Criticisms

• Factory Single-Channel RAM Configuration: This is the most frequent technical criticism in reviews from advanced buyers. By including a single 16GB DDR5 module instead of two 8GB modules, the system doesn't take advantage of the dual-channel output. Users advise in their comments that purchasing a second DDR5 RAM module is highly recommended to unlock the true potential of the Radeon 780M iGPU in games.

• Limited to a Single M.2 Slot: Several analysts on YouTube and hardware blogs lament that the motherboard only has one NVMe SSD slot. This means that to expand storage, you can't simply "add" a second drive; instead, you must replace the primary 1TB drive with a higher-capacity one (2TB or 4TB) and clone the operating system.

• Absence of OCuLink Port: Although it has a high-speed multifunction USB-C port, some external graphics card (eGPU) enthusiasts miss a dedicated OCuLink connector (PCIe Gen 4x4) that some direct rivals in the segment do integrate.

📊 Summary of Global Ratings

• Average rating in stores: ⭐⭐⭐⭐⭐ 4.6 / 5 stars

• Overall satisfaction: 88% of buyers recommend it. The vast majority agree that, with the simple addition of a second RAM module to enable Dual-Channel, the Ninkear M8 becomes a true compact "beast" for daily productivity, light editing, and 1080p gaming.

🔬 Technical Tests and Benchmarks

🧮 Processor (CPU) Performance

The Ryzen 7 8745HS stands out for maintaining very high sustained frequencies across its 8 cores and 16 threads, making the system respond instantly to heavy computing tasks.

• Cinebench R23 (Multicore): ~12,800 - 13,200 points.

  • Analysis: This result puts it on par with recent generations of desktop processors. It offers extremely solid performance for 3D rendering, multi-track video editing, compiling heavy software, and virtualization (simultaneous virtual machines without lag).

• Cinebench R23 (Single Model / Single Core): ~1,750 points.

  • Analysis: It reflects an agile and immediate response in opening applications, intense web browsing and day-to-day tasks where peak frequencies per core are paramount.

• Geekbench 6 (Single-Core / Multi-Core): ~2,400 / ~11,500 points.

  • Analysis: Confirms its fluency in modern work environments and code processing under Windows 11 or Linux systems.

🎮 Synthetic Graphics Performance (Integrated GPU)

The Radeon 780M 's RDNA 3 architecture sets it apart from previous generations of Intel or AMD iGPUs.

• 3DMark Time Spy (DirectX 12): ~2,900 - 3,100 points (in factory Single-Channel configuration).

  • 💡 Performance Note: By installing a second DDR5 RAM module to enable Dual-Channel architecture, the 3DMark Time Spy score rises to nearly 3,300-3,450 points. The increased bandwidth eliminates the shared VRAM bottleneck.

• 3DMark Night Raid (for integrated graphics): ~28,500 points.

  • Analysis: It shows overwhelming ability to run competitive games at 1080p with the maximum refresh rate.

💽 SSD Read/Write Performance (CrystalDiskMark)

The pre-installed 1TB M.2 2280 NVMe PCIe SSD offers optimal performance for the operating system and game loading:

• Sequential Read: ~3,500 MB/s

• Sequential Write: ~3,000 MB/s

• Access times: Minimal, which translates to Windows 11 Pro booting in less than 8 seconds from a complete shutdown.

🌡️ Thermal Stress and Throttling (FurMark + Prime95)

After subjecting the Ninkear M8 to a 30-minute combined stress test (CPU + GPU at 100% load):

• Maximum CPU temperature: Stabilizes between 78°C and 82°C, remaining comfortably below AMD's thermal limit (95°C). No thermal throttling (drastic performance drop due to heat) is observed.

• Sustained peak power consumption: The processor maintains a stable TDP of 35W to 45W, guaranteeing maximum power without generating overheating on the motherboard.

RAM memory tests (AIDA64 Cache & Memory Benchmark) in Factory Configuration (1x16 GB DDR5 5600 MHz – Single Channel)

• Read Speed: ~31,000 MB/s

• Write Speed: ~32,000 MB/s

• Latency: ~88 - 92 ns

• Analysis: Although the 5600 MHz frequency is very high, operating in single channel (a single 64-bit channel) limits the total bandwidth. This doesn't affect office use or browsing, but it creates a bottleneck for the integrated Radeon 780M graphics.

Recommended RAM Configuration (2x16 GB DDR5 5600 MHz – Dual Channel)

• Read Speed: ~59,000 - 62,000 MB/s (almost double)

• Write Speed: ~64,000 - 68,000 MB/s

• Latency: ~76 - 80 ns (best overall response)

• Analysis: By adding a second identical module, the architecture switches to Dual Channel (2x64 bits). The massive bandwidth allows the iGPU to access the shared VRAM without lag, resulting in a direct FPS increase of between 18% and 25% in games and noticeably faster 3D rendering.

🛒 If you're upgrading your computer, it's essential to choose DDR5 SO-DIMM modules at 5600 MHz: See DDR5 5600 MHz RAM on AliExpress

🎮 Gaming and Emulation

The integrated AMD Radeon 780M GPU (RDNA 3 architecture) allows for smooth gameplay at 1080p resolution:

• Esports / Lightweight Games: CS:GO 2, Valorant, League of Legends and Rocket League easily exceed 100 FPS at 1080p.

• AAA Games: Titles like Cyberpunk 2077, Shadow of the Tomb Raider, or Forza Horizon 5 are playable in 1080p with medium/low graphics settings by activating FSR (FidelityFX Super Resolution), maintaining averages between 45 and 60 FPS.

• Emulation: Capable of smoothly emulating demanding consoles such as PS2, GameCube, Wii U, Nintendo Switch and PS3 without significant frame drops.

❓ Frequently Asked Questions (FAQ)

1. Can I connect three monitors to the Ninkear M8?

Yes, by simultaneously using the HDMI, DisplayPort and front multifunction USB-C outputs.

2. Is it necessary to buy additional RAM?

The system works perfectly as is (16 GB). However, installing a second 16 GB DDR5 module activates Dual-Channel, which increases graphics performance in games by 15% to 25%.

3. Does it come with an active Windows license?

Yes, it includes Windows 11 Pro pre-installed and legally activated.

🏁 Final Conclusion

The Ninkear M8 is a versatile, powerful, and quiet Mini PC. It's an excellent choice for those seeking a primary desktop computer for heavy-duty tasks, light content editing, programming, or multimedia entertainment.
