KAMRUI Hyper H2 Review: Real-World Performance, Versions, and Opinion

The KAMRUI Hyper H2  is a mini PC available for sale with different high-power gaming laptop processors (14th generation Intel HX series) in the same tiny 0.67 liter chassis.

It's a machine designed for development, multi-core computing, and heavy multitasking. However, its integrated Intel UHD graphics are quite modest for modern 3D gaming.

It is an attractive purchase for intensive productivity as long as the right configuration is chosen.

Pros:

• Multi-core power with Intel Core HX processors with up to 16 cores and 24 threads.

• Tool-free opening via sliding mechanical latch.

• Extensive physical connectivity: 7 USB ports and triple 4K video output at 60 Hz.

• Large expandability capacity: 2 SO-DIMM DDR4 slots (up to 64 GB) and 2 M.2 NVMe/SATA slots (up to 4 TB).

Cons:

• Integrated Intel UHD graphics with 16 EUs, severely cut down for demanding games.

• Fan clearly audible under 100% heavy workloads.

• Network port limited to Gigabit Ethernet (1000 Mbps) instead of 2.5 GbE.

• DDR4 memory instead of the faster DDR5.

→ Check KAMRUI H2 prices on Amazon

→ Check KAMRUI H2 prices on AliExpress

Unboxing and box contents

The packaging is simple and compact. Inside the box we find:

• 1× KAMRUI Hyper H2 Mini PC

• 1× External power adapter (120 W, 19 V / 6.32 A with DC connector)

• 1× Flat HDMI 2.0 Cable

• 1× VESA metal bracket with its set of screws

• 1× User manual and quick setup guide

Key technical specifications

Design and construction quality

The chassis features a matte silver finish with an industrial aesthetic. It is made of polycarbonate reinforced with internal metal support elements.

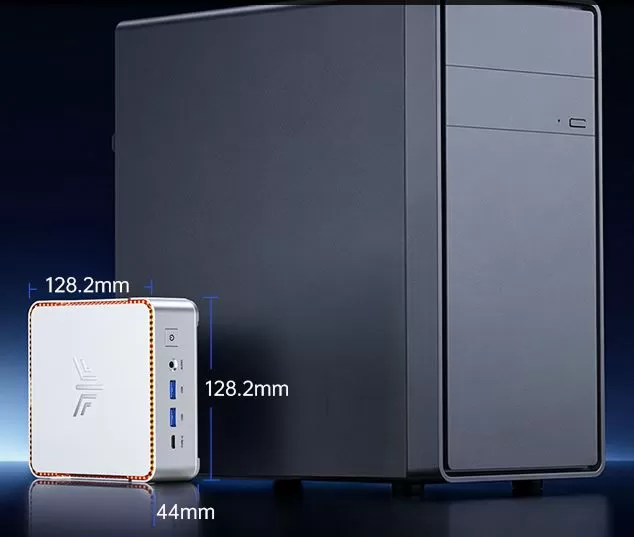

Measuring 12.8 × 12.8 × 4.1 cm, it takes up less space than a large coaster.

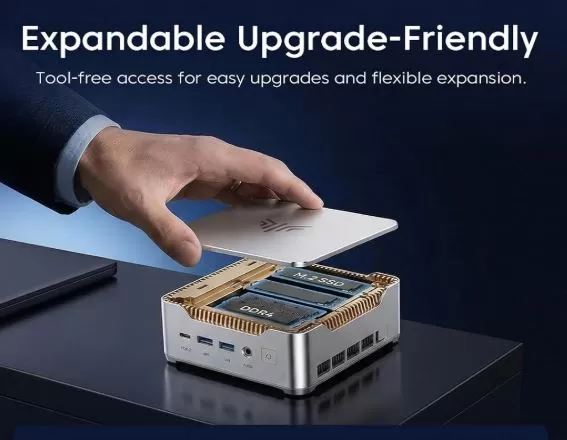

Its distinguishing feature is the top mechanical latch ( Quick Release Lock ) located at the rear. Sliding it to the left unlocks the top cover. This allows you to remove it by hand to access the two M.2 storage bays and the two RAM slots without using screwdrivers.

Display and multimedia experience

The device offers great versatility for multi-monitor desktops:

• HDMI 2.0: Maximum resolution 4K at 60 Hz.

• DisplayPort 1.4b: 4K at 60 Hz (and support for ultrawide monitors or higher refresh rates at 1440p).

• Front USB-C (DP Alt Mode): Outputs 4K video at 60 Hz and delivers up to 15 W via Power Delivery, enough to power a portable monitor.

The playback of 4K and 8K multimedia content on YouTube, Netflix or local files is smooth thanks to the Intel QuickSync hardware decoding engine integrated into the CPU.

As for audio, it has a front 3.5 mm jack connector for headphones or speakers.

Performance and software

The computer comes with a clean Windows 11 Pro, without bloatware or intrusive promotional applications.

The included NVMe PCIe 4.0 SSD delivers solid transfer rates:

• Sequential read: ~4.850 MB/s

• Sequential write speed: ~3,900 MB/s

The experience of navigating with dozens of tabs open, managing massive spreadsheets in Excel, or maintaining active development environments (Docker, PHP/Laravel servers, MariaDB databases) is instantaneous.

→ Check KAMRUI H2 prices on Amazon

→ Check KAMRUI H2 prices on AliExpress

Energy consumption

The external 120W power supply ensures sufficient power to sustain the HX series' power peaks:

• At rest (desktop without load): 11 W – 14 W

• Office workload and browsing: 28 W – 42 W

• Peak stress (PL2 Turbo Boost): 85 W – 95 W during the first few seconds

• Prolonged sustained load (PL1): Stabilizes around 55 W

Temperature and noise

The dissipation system combines a lower centrifugal turbine, two copper heat pipes, and dedicated finned heat sinks above the M.2 sockets.

• At idle: The CPU temperature hovers around 38°C – 43°C. The fan spins at low speeds and is barely noticeable in a quiet room.

• In everyday tasks: It maintains a temperature between 50 °C and 62 °C with a very discreet noise level.

• Under prolonged stress (Cinebench R23 for 15 minutes): The CPU package temperature peaks at 88°C–92°C before stabilizing around 80°C through dynamic frequency adjustment. The fan produces a continuous whirring sound (approximately 43 dB measured at 50 cm), audible but without any annoying high-pitched whine. bestbuy+1

Connectivity and extras

The port selection surpasses the segment average by eliminating the need for external adapters:

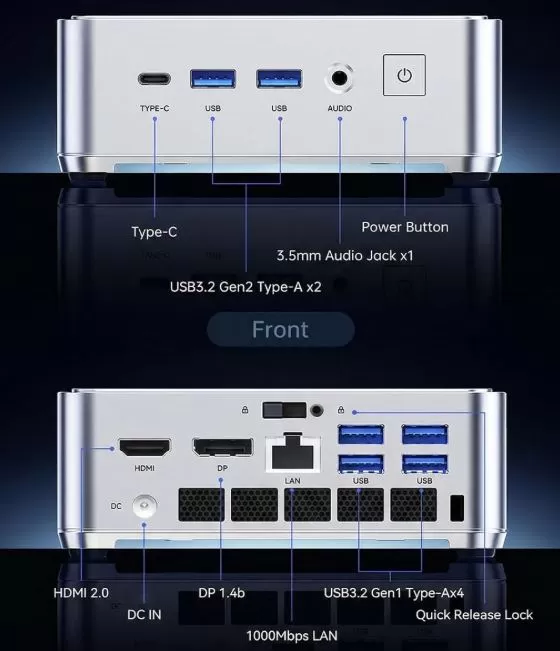

• Front: 1× USB-C (10 Gbps + video + 15W charging), 2× USB 3.2 Gen 2 (10 Gbps), 3.5 mm audio jack.

• Rear: 4× USB 3.2 Gen 1 (5 Gbps), 1× HDMI 2.0, 1× DisplayPort 1.4, 1× RJ-45 Gigabit Ethernet, DC jack.

• Wireless Network: Dual-band Wi-Fi 6 and Bluetooth 5.2.

• Professional BIOS features: Active TPM 2.0 module for Windows 11, RTC clock scheduled power-on and UEFI PXE diskless network boot.

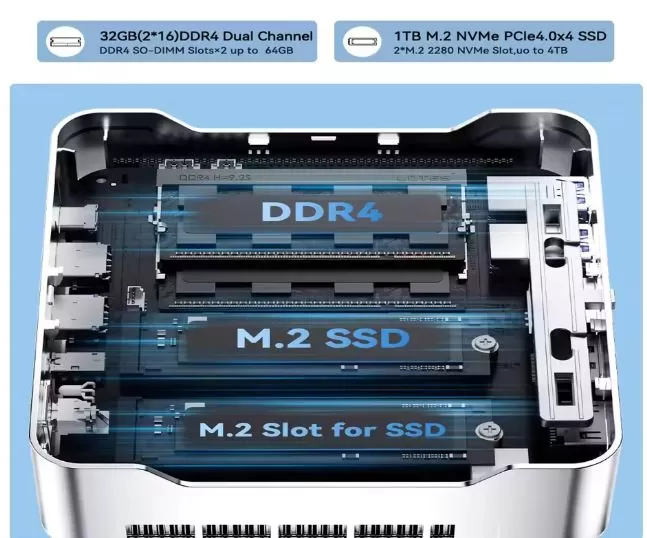

Expansion and internal components

The upgradeability of the KAMRUI Hyper H2 is outstanding in its size range:

• RAM: Supports up to 64GB DDR4 at 3200MHz via two standard SO-DIMM slots. If you purchase the 16GB version, you can upgrade to a DDR4 SO-DIMM RAM kit  to expand it to a maximum of 32GB or 64GB.

• SSD Storage: It has two independent M.2 2280 slots:

  1. Primary slot: High-speed PCIe 4.0x4 NVMe.

  2. Secondary slot: Hybrid interface compatible with both NVMe drives and M.2 SATA disks.

  3. The total supported storage is 4TB.

To expand storage space without removing the main drive, you can add an NVMe M.2 2280 PCIe 4.0 SSD ( check prices ) in the second slot, taking advantage of the passive cooling included as standard.

Note: It does not have a bay for 2.5-inch mechanical SATA hard drives.

Comparison with Competitors

Store reviews and user analyses

When filtering verified Amazon reviews for the i5-14500HX and i7-14650HX variants, the comments reflect a clear pattern:

• Satisfaction with the setup: The initial setup with Windows 11 Pro is completed in minutes without activation issues.

• Port convenience: Users appreciate not having to rely on USB docks to connect office peripherals.

• Agility in music production and multitasking: They positively value fluency when working with digital audio workstations (DAWs) and batch processing.

• Gaming expectations: Some buyers note that simple titles like The Sims or indie games run smoothly, but warn of frame rate drops when trying to run demanding 3D games due to the limitations of the integrated GPU.

Technical tests and benchmarks

Gaming and emulation

This mini PC is not a gaming PC. Intel HX series processors reduce the execution units of their integrated graphics to just 16 EUs, as they are designed to be used with dedicated graphics cards in laptops.

• Modern games (Cyberpunk 2077, Starfield): Unplayable under acceptable conditions, even at 720p on minimum quality.

• Light titles and eSports: League of Legends, Valorant, CS:GO or The Sims 4 run at 1080p with low or medium settings above 45–60 FPS.

• Emulation: It smoothly runs classic consoles up to PlayStation 1, PSP, Nintendo 64, and Dreamcast. On PlayStation 2 and GameCube, most titles are playable at native resolution, but it suffers from slowdowns on more demanding emulators (such as RPCS3 for PS3 or Switch) where AMD Radeon 780M or Intel Arc graphics architectures perform better.

Frequently Asked Questions (FAQ)

Can the mini PC be powered via its USB-C port?

No. The front USB-C port delivers power (15W Power Delivery) to power external peripherals or portable monitors, but it does not receive power to turn on the computer. It must be connected to a power outlet using its 120W DC charger.

Can I connect three 4K monitors at the same time?

Yes. The device manages three simultaneous displays at 4K@60Hz using its three independent outputs: the HDMI 2.0 port, the DisplayPort 1.4 connector, and the front USB-C port via DisplayPort Alt Mode.

Does it support traditional 2.5-inch SATA hard drives?

No. The chassis prioritizes compact size and has no space or SATA ribbon connectors for 2.5" mechanical hard drives or SSDs. Internal expansion is done exclusively through its two M.2 2280 SSD slots.

Final conclusion

The KAMRUI Hyper H2 is an ultra-compact workstation designed for users who prioritize raw processor power in a small footprint. It stands out for its tool-less memory and storage upgradeability, variety of USB ports, and seamless multi-monitor management.

Who is it ideal for?

• Software developers who work with Docker, compilers, or local environments.

• Offices and users who handle heavy databases or multi-window workstations.

• Home labs looking for a compact computing node with Windows 11 Pro or Linux distributions.

When should you look for another alternative?
If your priority is video games or emulating recent consoles, a mini PC based on AMD Ryzen processors with Radeon 780M graphics will offer a far superior visual experience in the same price range.
